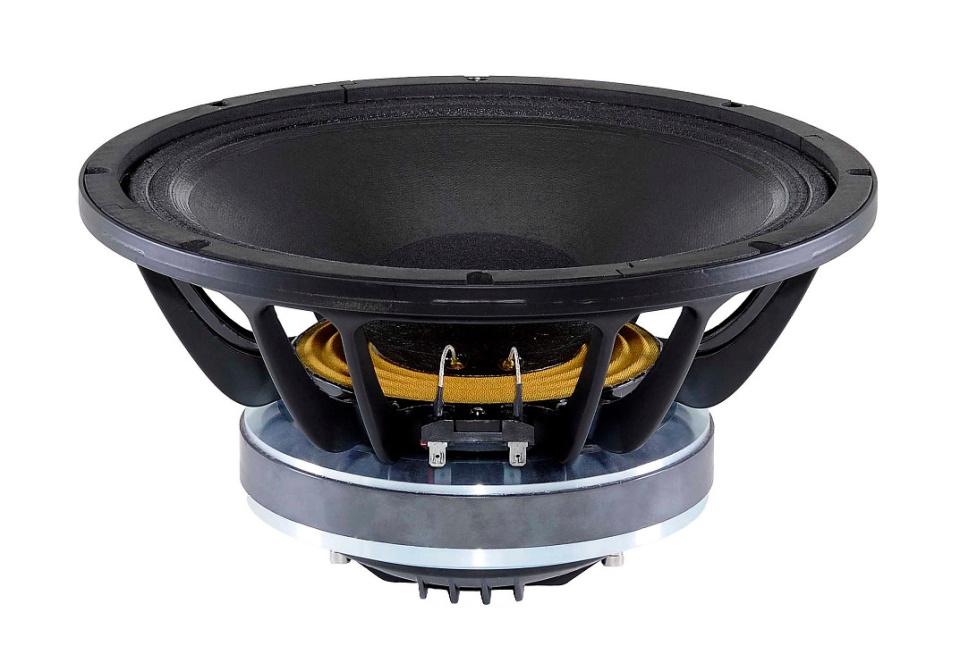

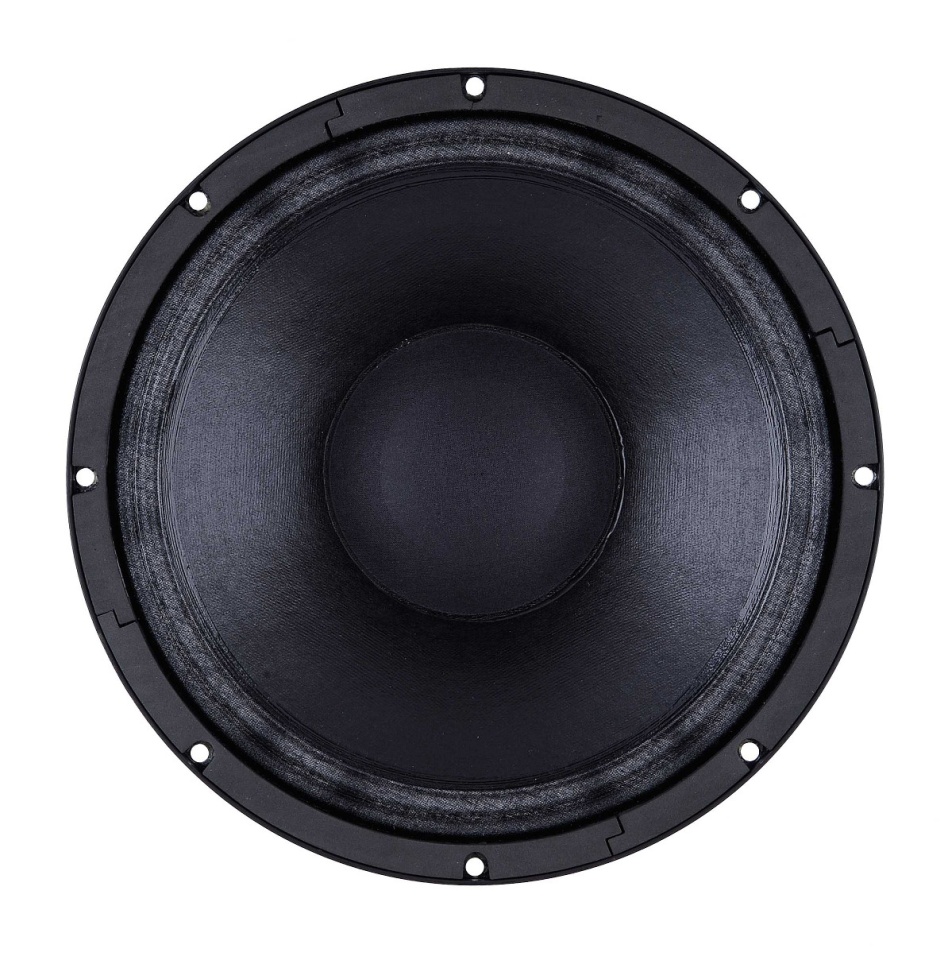

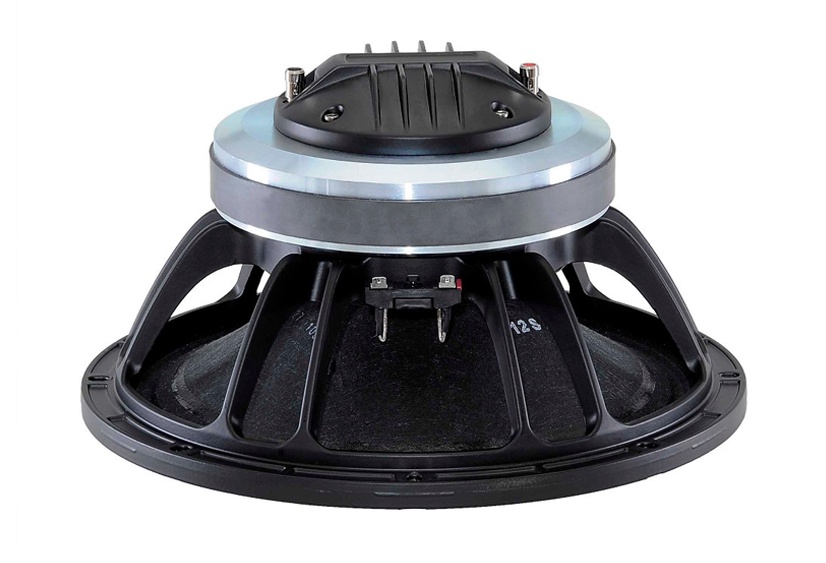

Difuzor coaxial 12 Inch B&C 12FCX76 - 8 Ohm
Descriere
Specificatii:
Diametru: 320 mm (12.0 in)
Impedanta: 8 Ω
Impedanta minima LF: 6.3 Ω
Impedanta minima HF: 7.8 Ω
Gama frecventa: 47 - 18000 Hz
Unghi dispersie: 80°
Magnet: Ferita (ceramic)
Sensibilitate (LF-HF): 98.0 - 106.0 dB
Putere nominala (LF-HF): 350 - 80 W
Putere continua program (LF-HF): 700 - 160 W
Diametrul bobinei (LF-HF): 76 - 75 mm (3.0 - 3.0 in)
Sarma bobina (LF-HF): cupru - aluminiu
Diafragma: titaniu
Frecventa de taiere recomandata: 1.2 kHz
Parametri:
Fs 47 Hz
Re 5 Ω
Qes 0.35
Qms 11.0
Qts 0.34
Vas 82.0 dm3 (2.98 ft3)
Sd 522.0 cm2 (80.9 in2)
η₀ 2.3 %
Xmax 6.5 mm
Xvar 5.0 mm
Mms 54 g
Bl 15.6 Txm
Le 1.3 mH
EBP 134 Hz

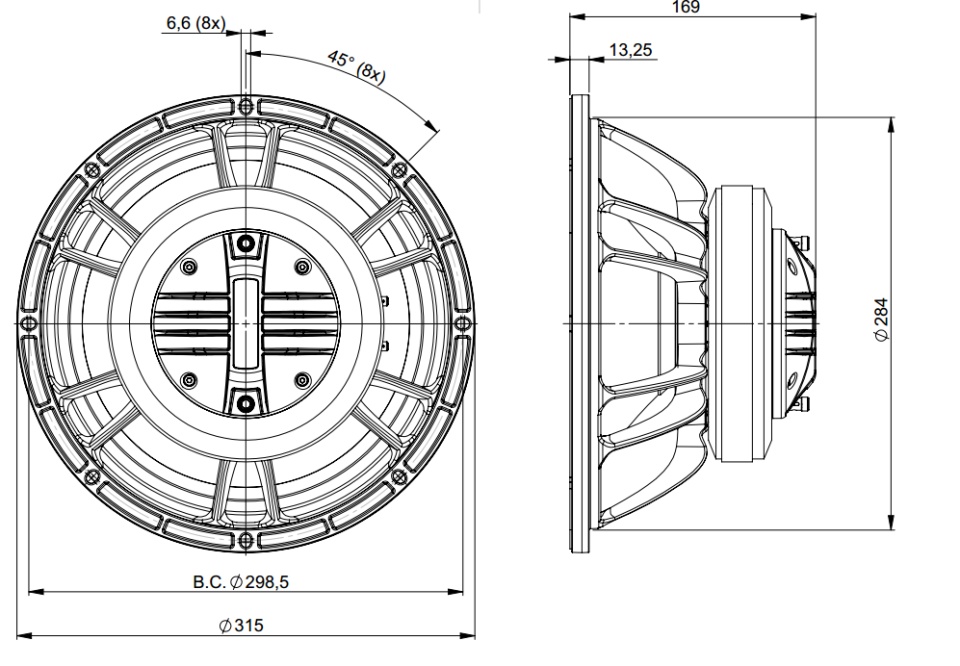

Dimensiuni si masa:
Diametru total: 315 mm (12.5 in)
Diametru gaurilor de prindere: 298 mm (11.7 in)
Diametru gaurii de decupaj: 282 mm (11.1 in)
Adancime difuzor: 169 mm (6.65 in)
Grosime sasiu: 14 mm (0.55 in)
Masa neta: 8.0 kg (17.6 lb)
Masa totala cu ambalaj: 8.7 kg (19.2 lb)
Dimensiuni cutie difuzor: 446x439x253 mm (17.5x17.3x10 in)
