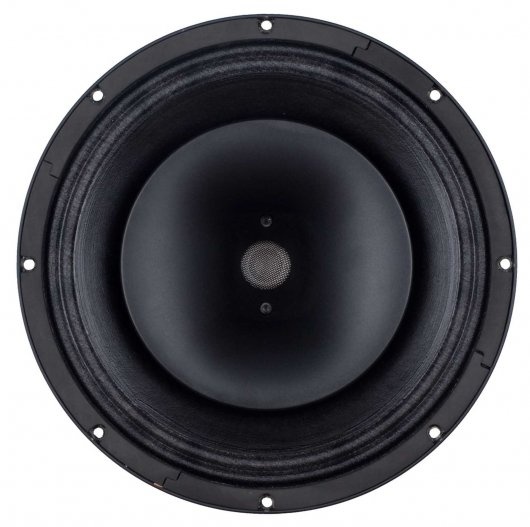

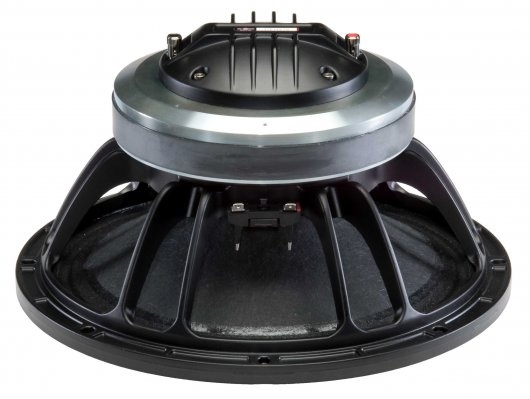

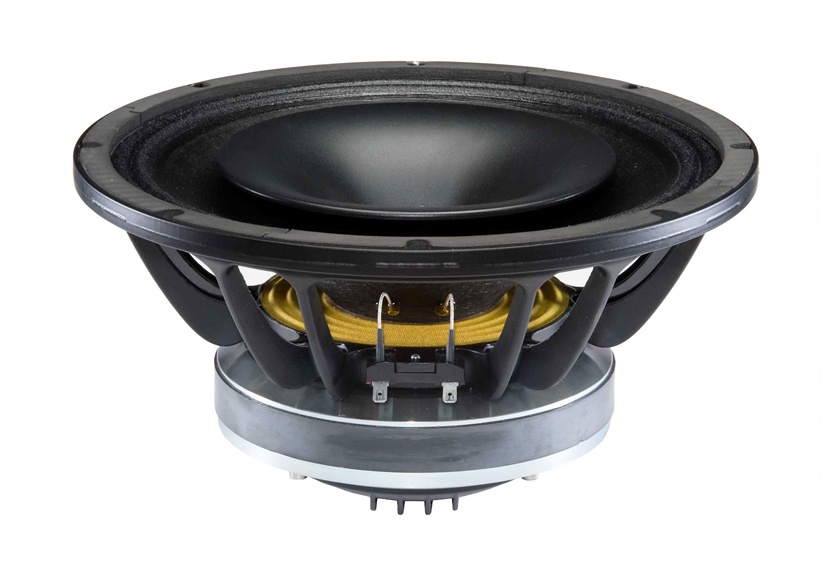

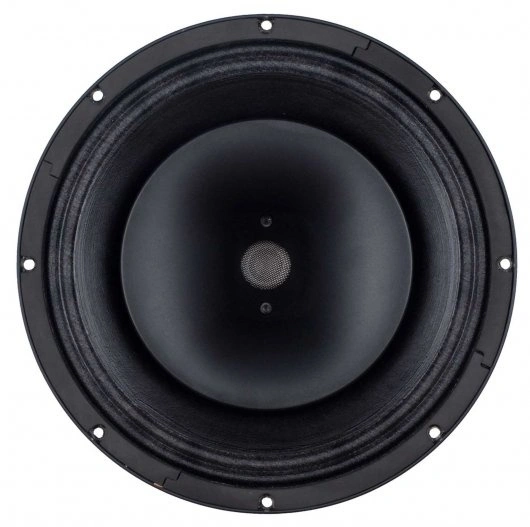

Difuzor coaxial 12 Inch B&C 12FHX76 - 8 Ohm
Descriere
Specificatii:
Diametru: 320 mm (12.0 in)
Impedanta: 8 Ω
Impedanta minima LF: 6.0 Ω
Impedanta minima HF: 7.8 Ω
Gama frecventa: 45 - 18000 Hz
Unghi dispersie: 60° x 40°
Magnet: Ferita (ceramic)
Sensibilitate (LF-HF): 98.0 - 106.0 dB
Putere nominala (LF-HF): 350 - 80 W
Putere continua program (LF-HF): 700 - 160 W
Diametrul bobinei (LF-HF): 76 - 75 mm (3.0 - 3.0 in)
Sarma bobina (LF-HF): cupru - aluminiu
Diafragma: titaniu
Frecventa de taiere recomandata: 1.2 kHz
Parametri:
Fs 48 Hz
Re 5 Ω
Qes 0.36
Qms 5.4
Qts 0.33
Vas 88.0 dm3 (3.1 ft3)
Sd 522.0 cm2 (80.9 in2)
η₀ 2.7 %
Xmax 6.5 mm
Xvar 4.0 mm
Mms 47 g
Bl 14.4 Txm
Le 1.6 mH
EBP 133 Hz

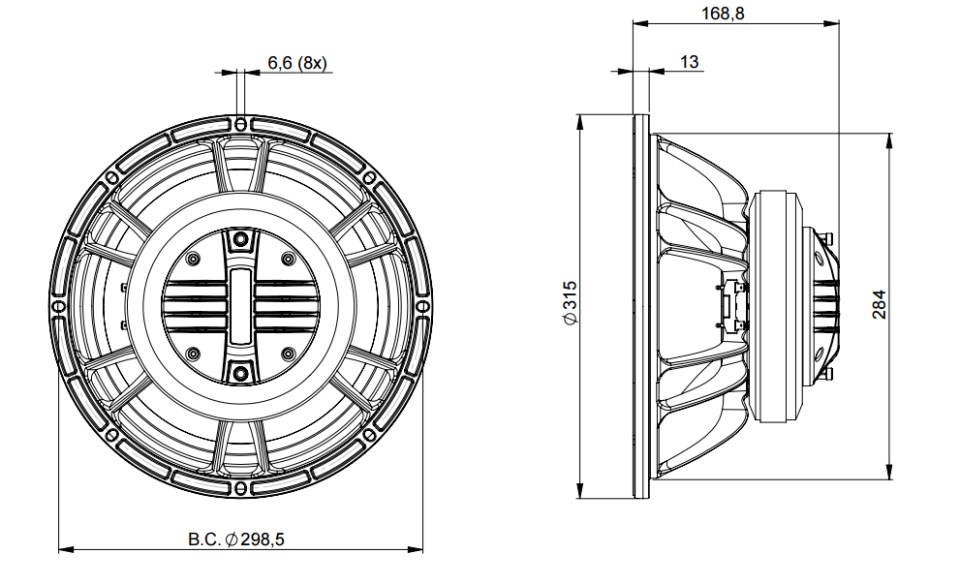

Dimensiuni si masa:
Diametru total: 315 mm (12.4 in)
Diametru gaurilor de prindere: 298 mm (11.7 in)
Diametru gaurii de decupaj: 284 mm (11.14 in)
Adancime difuzor: 169 mm (6.65 in)
Grosime sasiu: 13 mm (0.51 in)
Masa neta: 8.5 kg (18.7 lb)
Masa totala cu ambalaj: 10.3 kg (22.7 lb)
Dimensiuni cutie difuzor: 380x380x240 mm (15x15x9 in)
