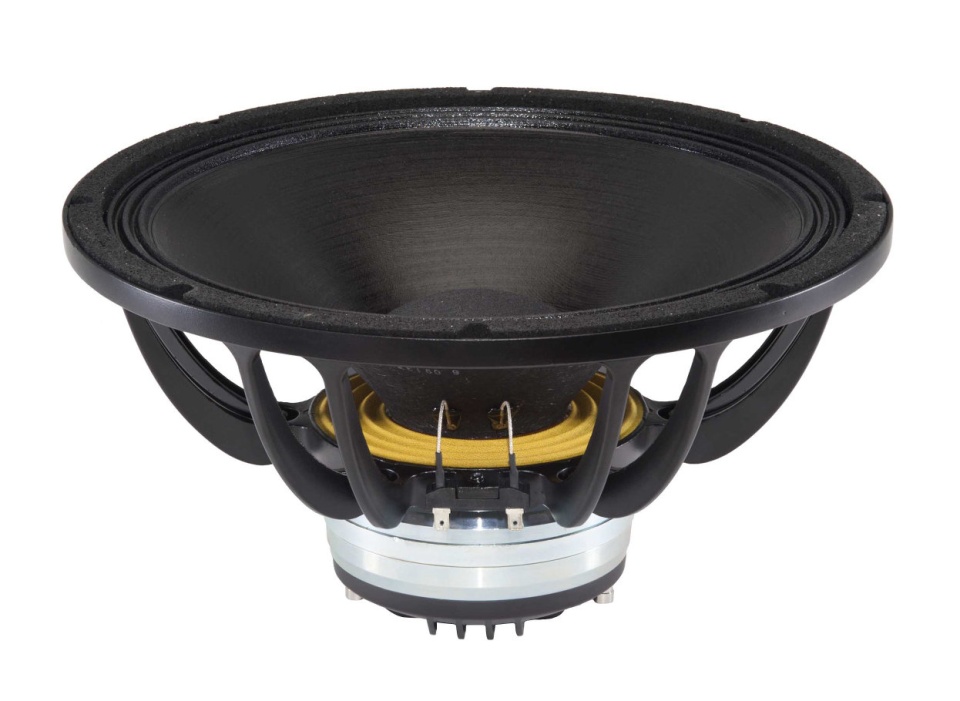

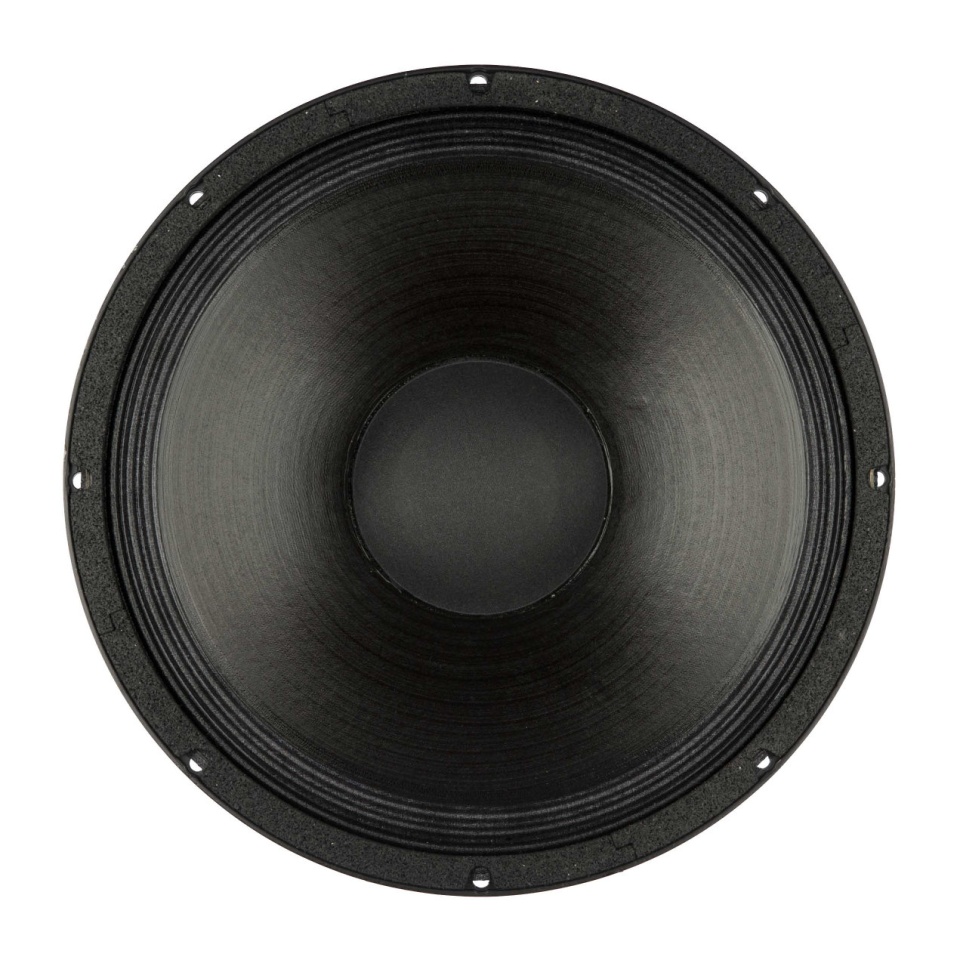

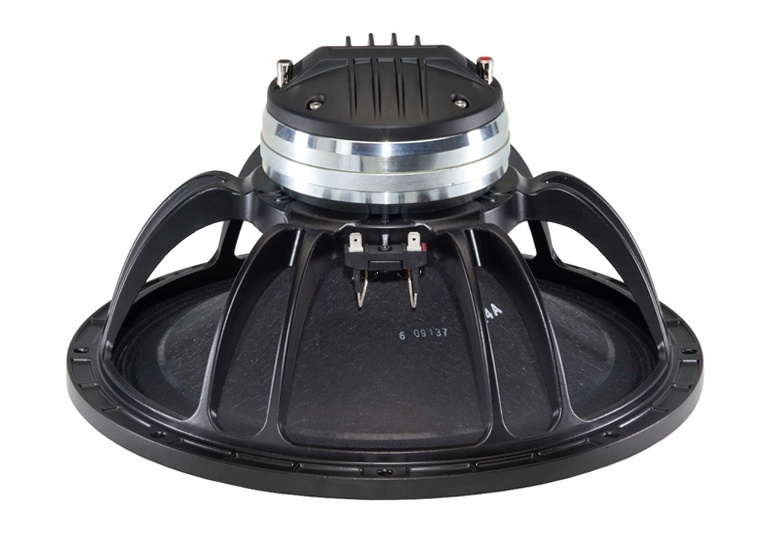

Difuzor coaxial 13.5 Inch B&C 14CXN76 - 8 Ohm
Descriere
Specificatii:
Diametru: 355 mm (14.0 in)

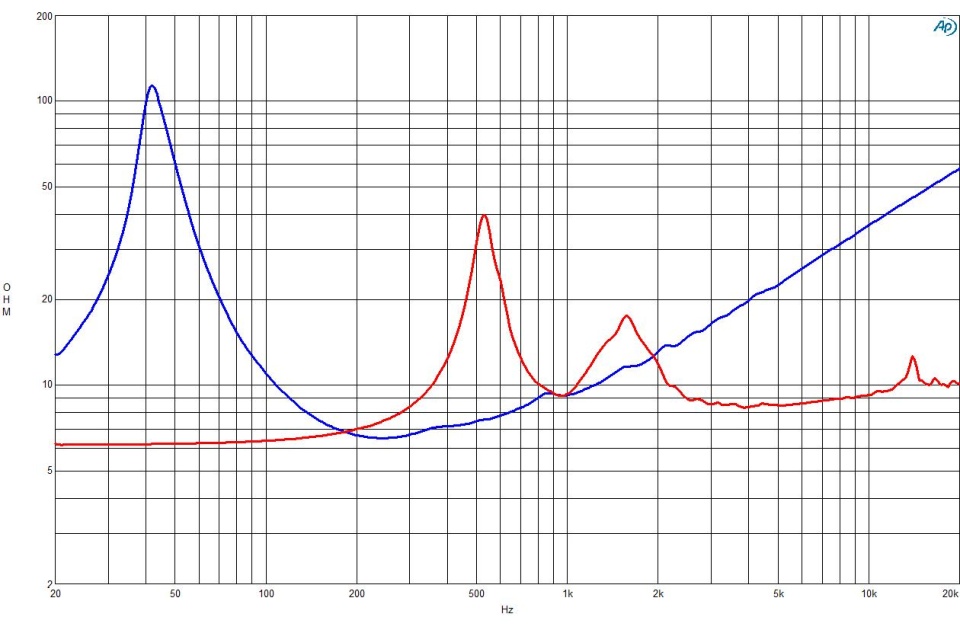

Impedanta: 8 Ω
Impedanta minima LF: 6.5 Ω
Impedanta minima HF: 8.2 Ω
Gama frecventa: 45 - 18000 Hz
Unghi dispersie: 80°
Magnet: Neodymium Ring

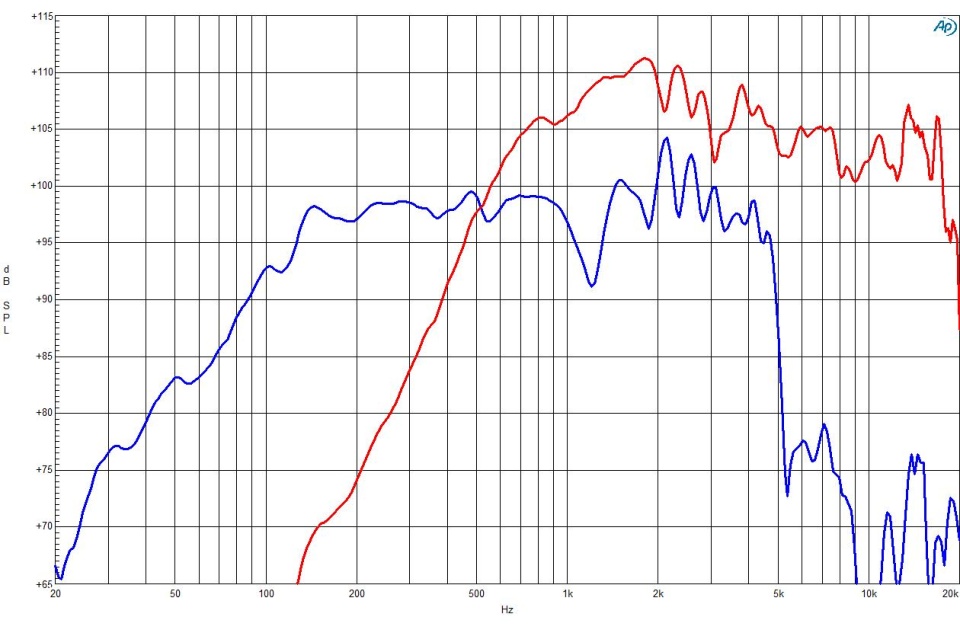

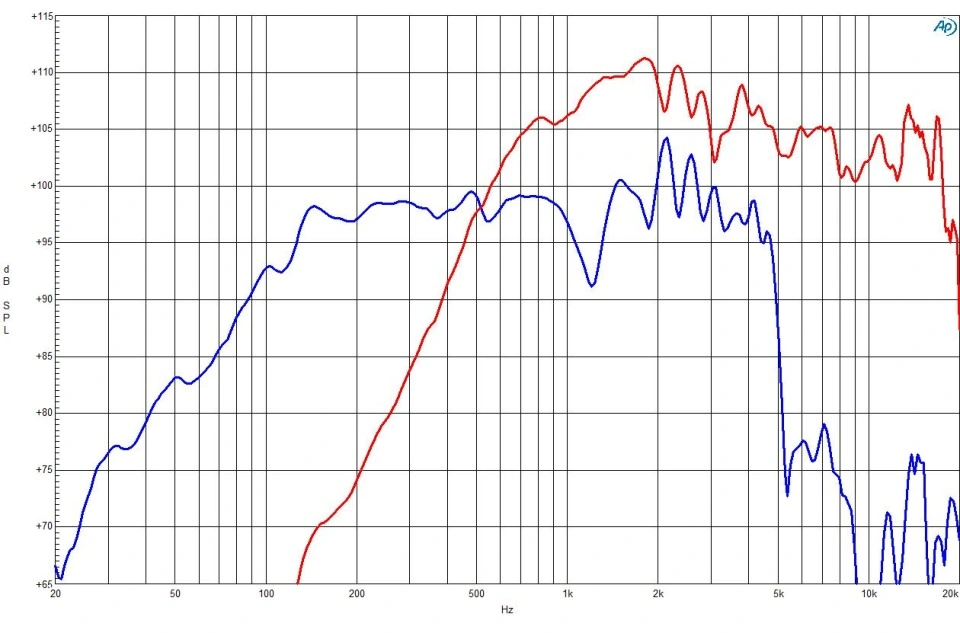

Sensibilitate (LF-HF): 100.0 - 105.0 dB
Putere nominala (LF-HF): 400 - 80 W
Putere continua program (LF-HF): 800 - 160 W
Diametrul bobinei (LF-HF): 76 - 75 mm (3.0 - 3.0 in)
Sarma bobina (LF-HF): cupru - aluminiu
Diafragma: poliester/titaniu
Frecventa de taiere recomandata: 1.2 kHz
Parametri:
Fs 45 Hz
Re 5.2 Ω
Qes 0.29
Qms 8.5
Qts 0.28
Vas 131.0 dm3 (4.63 ft3)
Sd 707.0 cm2 (109.59 in2)
η₀ 4.0 %
Xmax 6.0 mm
Xvar 8.0 mm
Mms 67 g
Bl 18.4 Txm
Le 1.0 mH
EBP 155 Hz

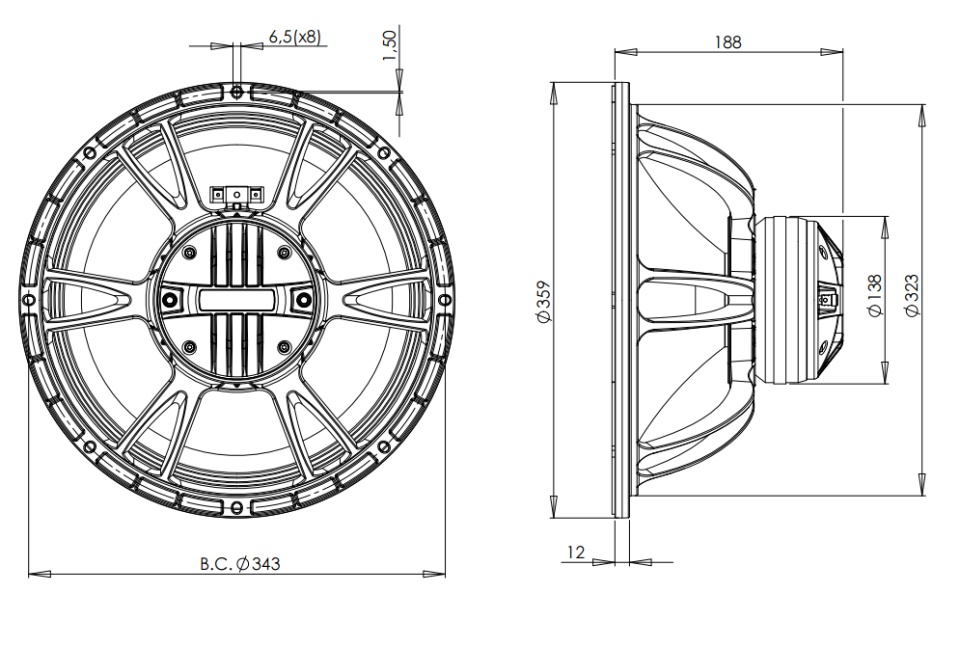

Dimensiuni si masa:
Diametru total: 359 mm (14.13 in)
Diametru gaurilor de prindere: 343 mm (13.5 in)
Diametru gaurii de decupaj: 323 mm (12.72 in)
Adancime difuzor: 191 mm (7.52 in)
Grosime sasiu: 15 mm (0.59 in)
Masa neta: 5.6 kg (12.35 lb)
Masa totala cu ambalaj: 7.1 kg (15.65 lb)
