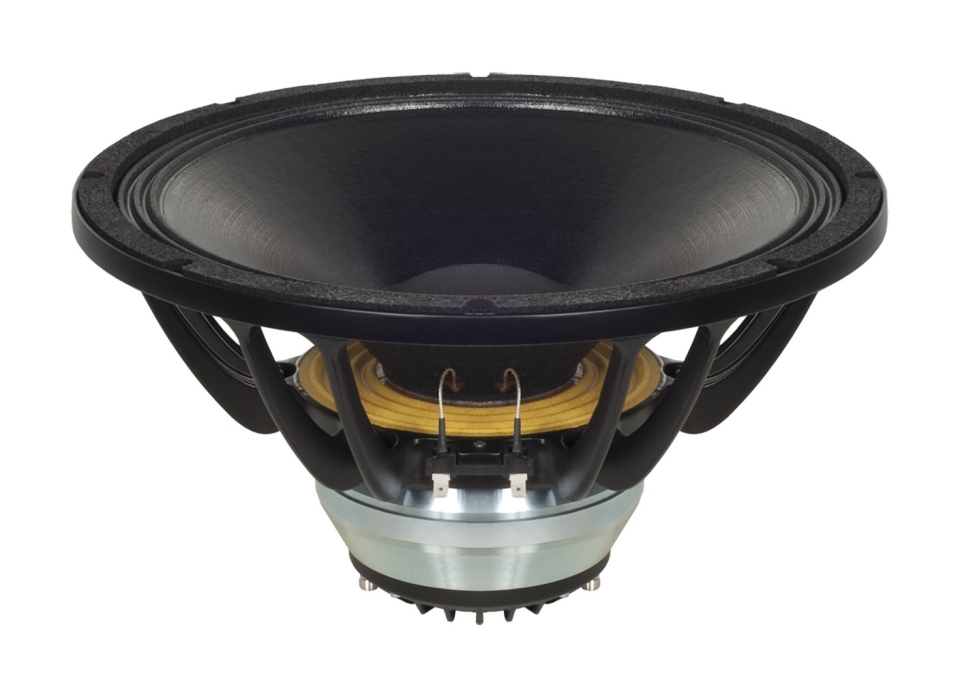

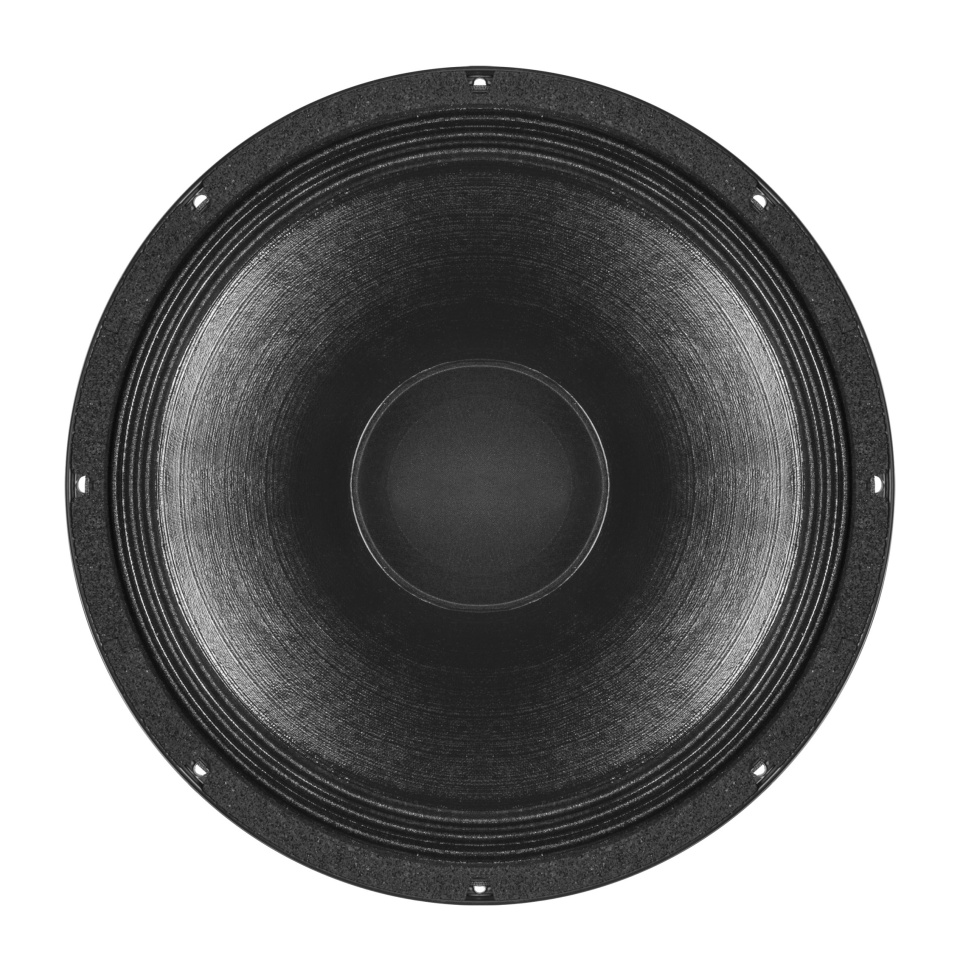

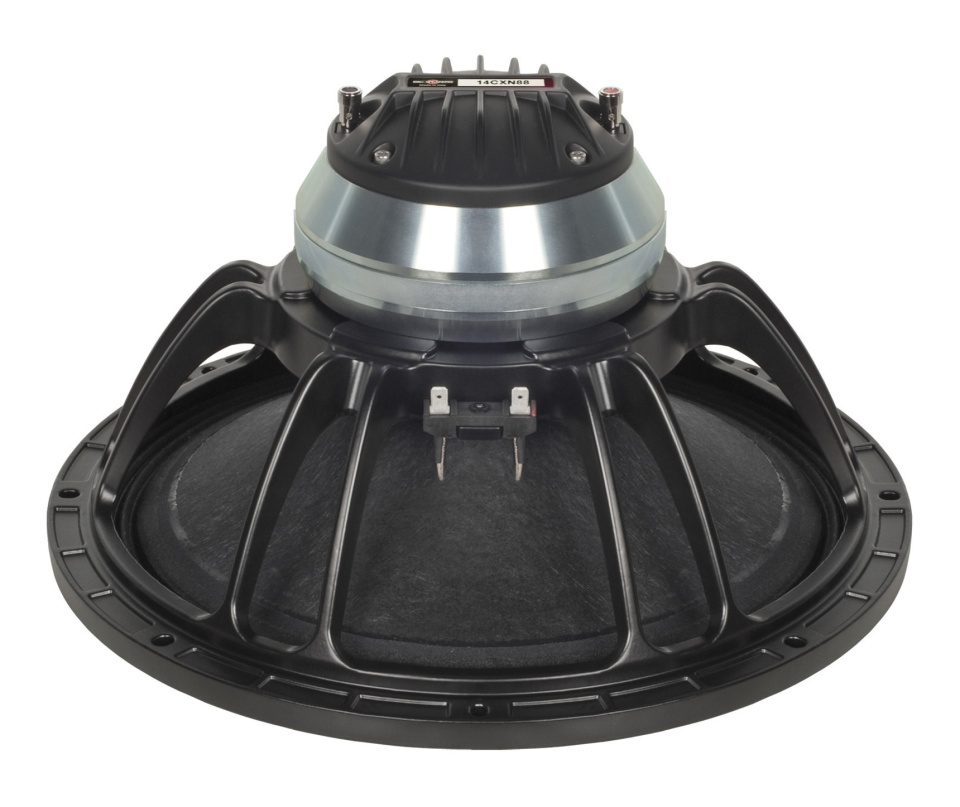

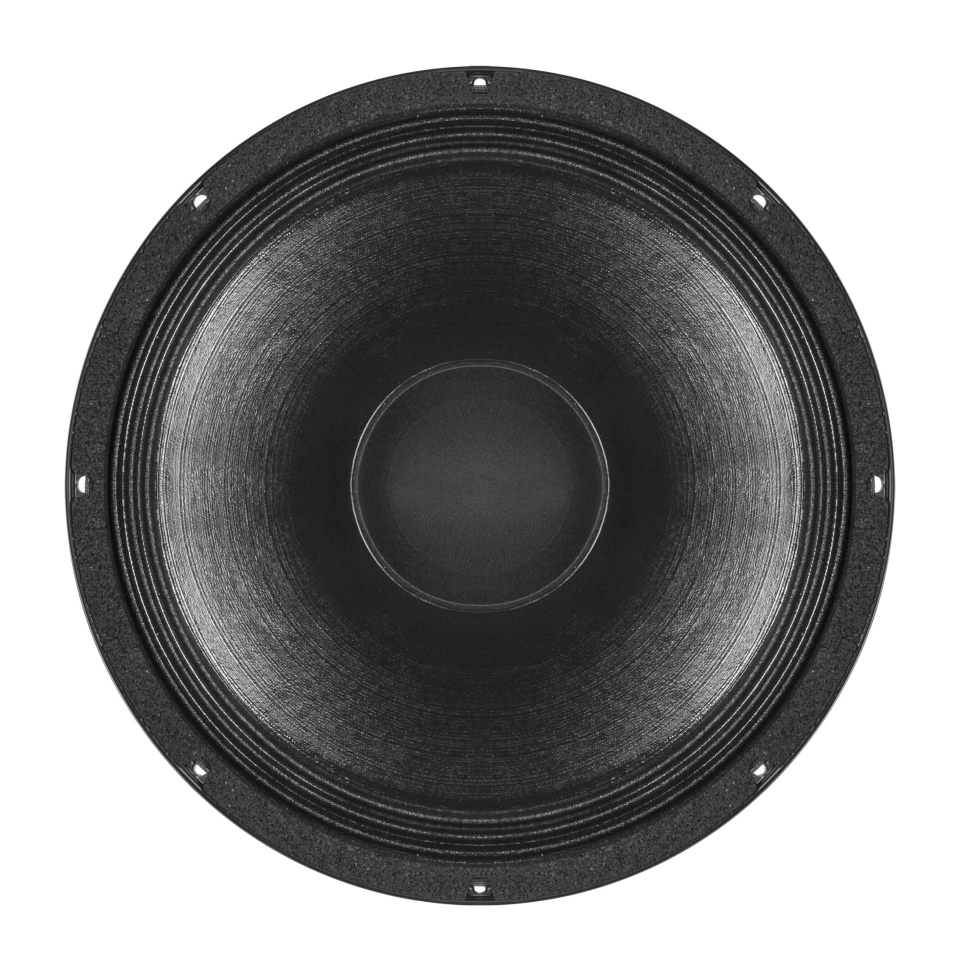

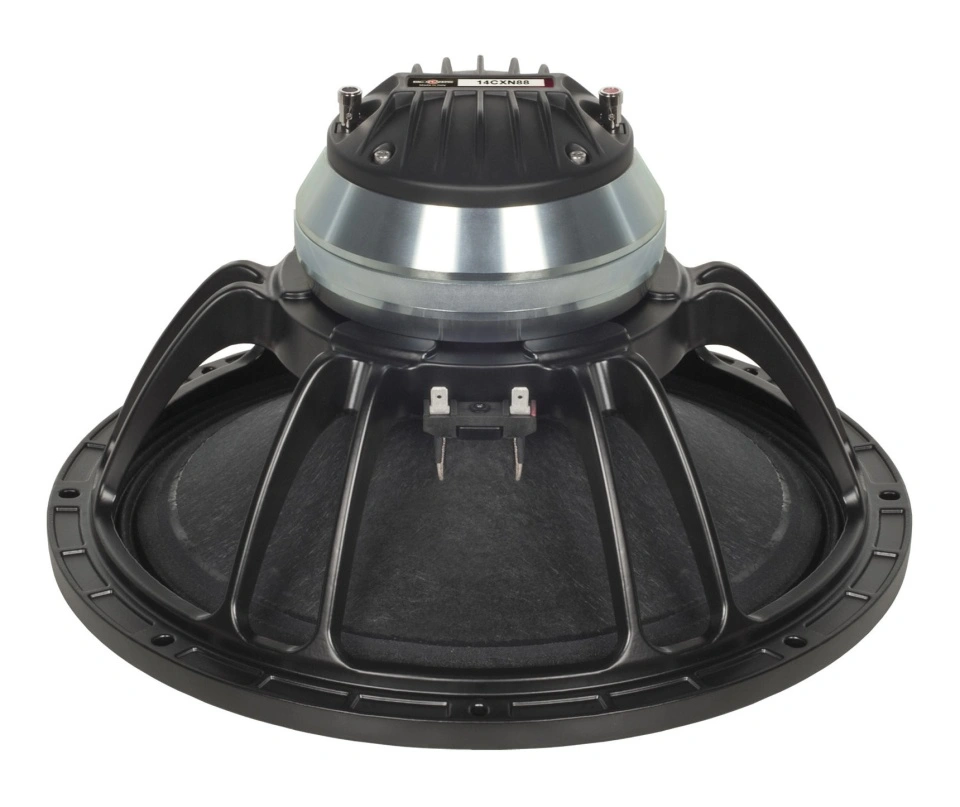

Difuzor coaxial 13.5 Inch B&C 14CXN88 - 4 Ohm
Descriere
Specificatii:
Diametru: 343 mm (13.5 in)

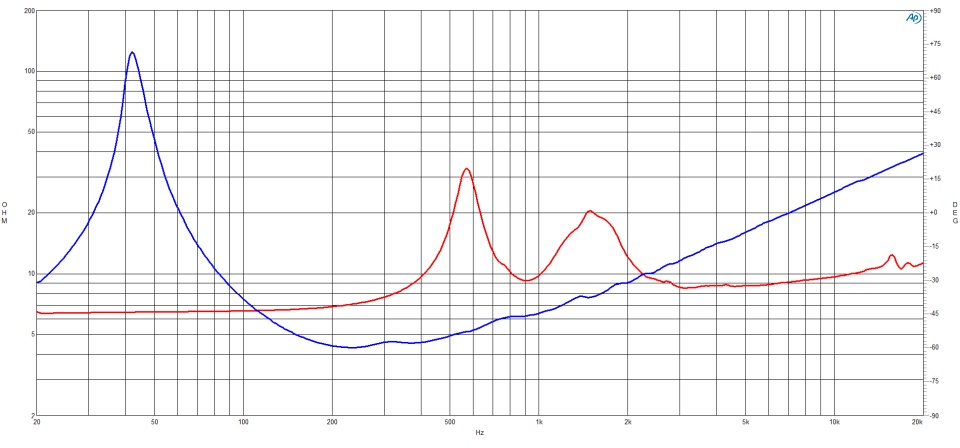

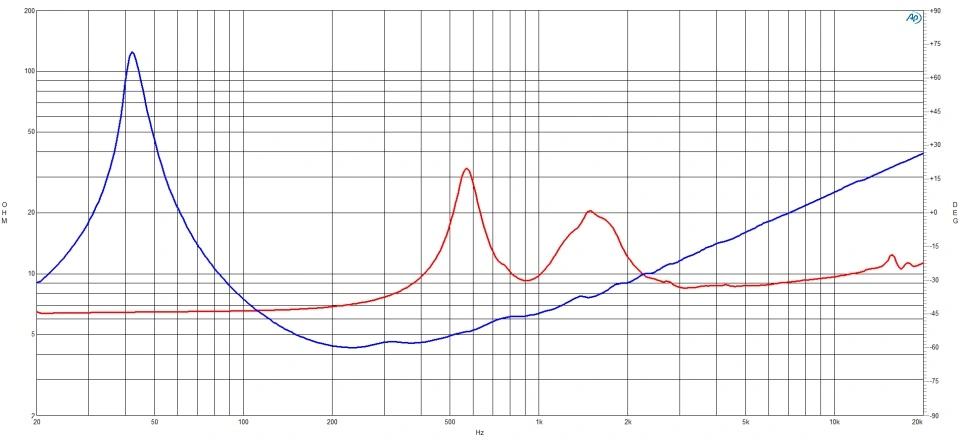

Impedanta: 4 Ω
Impedanta minima LF: 4.3 Ω
Impedanta minima HF: 8.8 Ω
Gama frecventa: 45 - 18000 Hz
Unghi dispersie: 80°
Magnet: Neodymium Ring

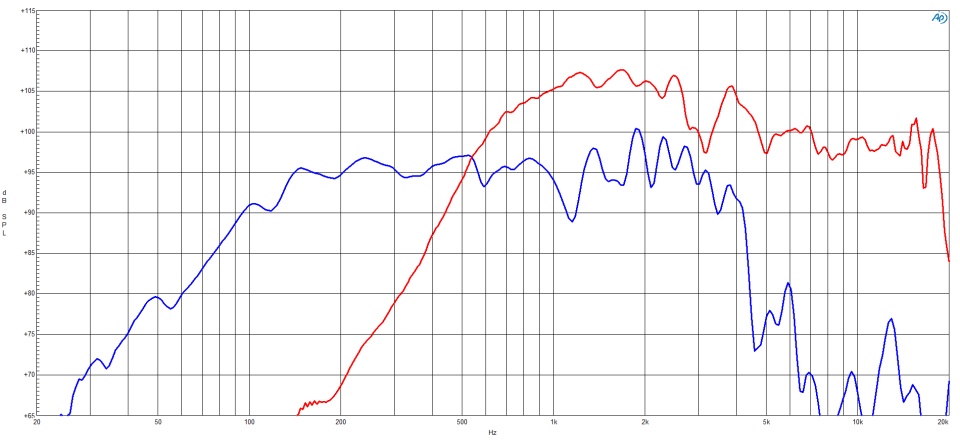

Sensibilitate (LF-HF): 99 - 103 dB
Putere nominala (LF-HF): 500 - 80 W
Putere continua program (LF-HF): 1000 - 160 W
Diametrul bobinei (LF-HF): 88 - 75 mm (3.5 - 3.0 in)
Sarma bobina (LF-HF): aluminiu - aluminiu
Diafragma (LF-HF): fibra de sticla - titan
Adancime bobina LF: 22 mm (0.87 in)
Adancime piesa polara LF: 10 mm (0.39 in)
Densitate flux magnetic (LF-HF): 1.05 - 1.75 T
Frecventa de taiere recomandata: 1.2 kHz
Parametri:
Fs 44 Hz
Re 3.2 Ω
Qes 0.26
Qms 15
Qts 0.25
Vas 116 dm3 (4.1 ft3)
Sd 707 cm2 (109.59 in2)
η₀ 3.8 %
Xmax 8.5 mm
Xvar 9 mm
Mms 78.5 g
Bl 16.6 Txm
Le 0.72 mH
EBP 169 Hz

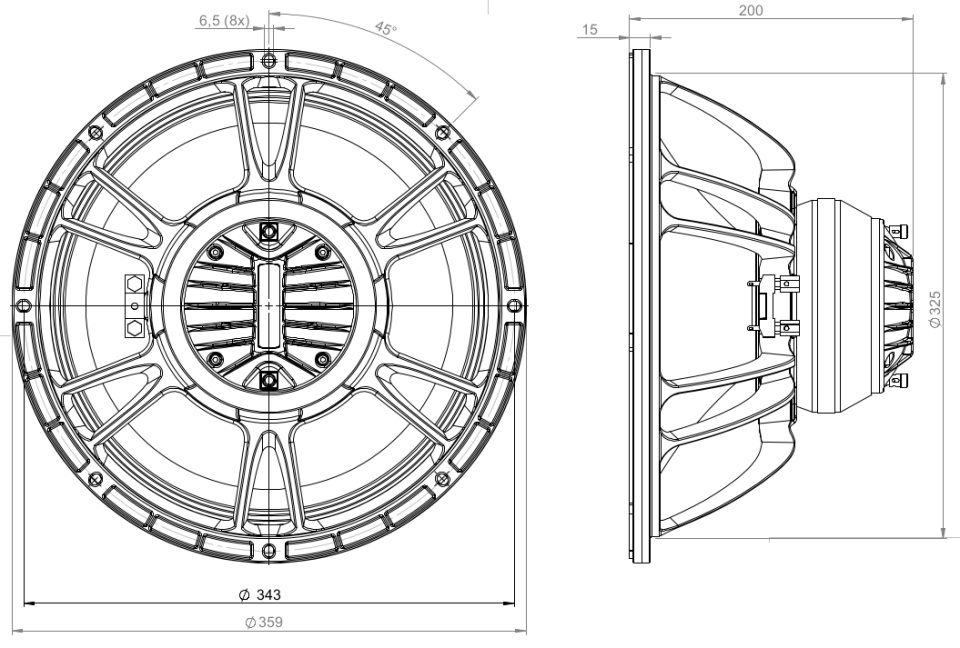

Dimensiuni si masa:
Diametru total: 359 mm (14.13 in)
Diametru gaurilor de prindere: 343 mm (13.5 in)
Diametru gaurii de decupaj: 326 mm (12.83 in)
Adancime difuzor: 200 mm (7.87 in)
Grosime sasiu: 15 mm (0.59 in)
Masa neta: 7.3 kg (16.09 lb)
Masa totala cu ambalaj: 8.9 kg (19.62 lb)
