Difuzor coaxial 15 Inch B&C 15FCX76 - 8 Ohm
Descriere
Specificatii:
Diametru: 380 mm (15.0 in)
Impedanta: 8 Ω
Impedanta minima LF: 6.0 Ω
Impedanta minima HF: 7.8 Ω
Gama frecventa: 40 - 18000 Hz
Unghi dispersie: 80°
Magnet: Ferita (ceramic)
Sensibilitate (LF-HF): 98.0 - 105.0 dB
Putere nominala (LF-HF): 400 - 80 W
Putere continua program (LF-HF): 800 - 160 W
Diametrul bobinei (LF-HF): 76 - 75 mm (3.0 - 3.0 in)
Sarma bobina (LF-HF): cupru - aluminiu
Diafragma: titaniu
Frecventa de taiere recomandata: 1.2 kHz
Parametri:
Fs 40 Hz
Re 5 Ω
Qes 0.47
Qms 8.3
Qts 0.44
Vas 187.0 dm3 (6.6 ft3)
Sd 855.0 cm2 (132.5 in2)
η₀ 2.5 %
Xmax 6.5 mm
Xvar 7.5 mm
Mms 87 g
Bl 15.6 Txm
Le 1.2 mH
EBP 85 Hz

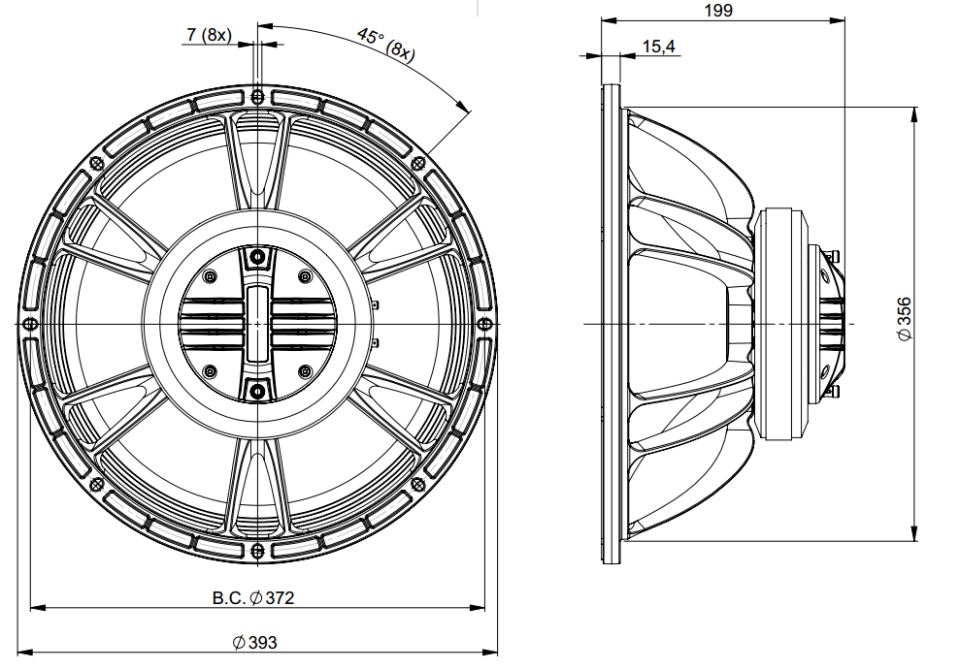

Dimensiuni si masa:
Diametru total: 393 mm (15.5 in)
Diametru gaurilor de prindere: 374 mm (16.7 in)
Diametru gaurii de decupaj: 353 mm (13.9 in)
Adancime difuzor: 199 mm (7.83 in)
Grosime sasiu: 16 mm (0.62 in)
Masa neta: 9.0 kg (19.8 lb)
Masa totala cu ambalaj: 9.7 kg (21.4 lb)
Dimensiuni cutie difuzor: 446x439x253 mm (17.5x17.3x10 in)
