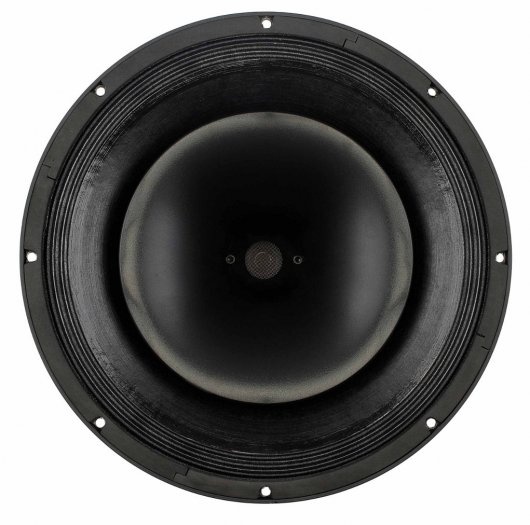

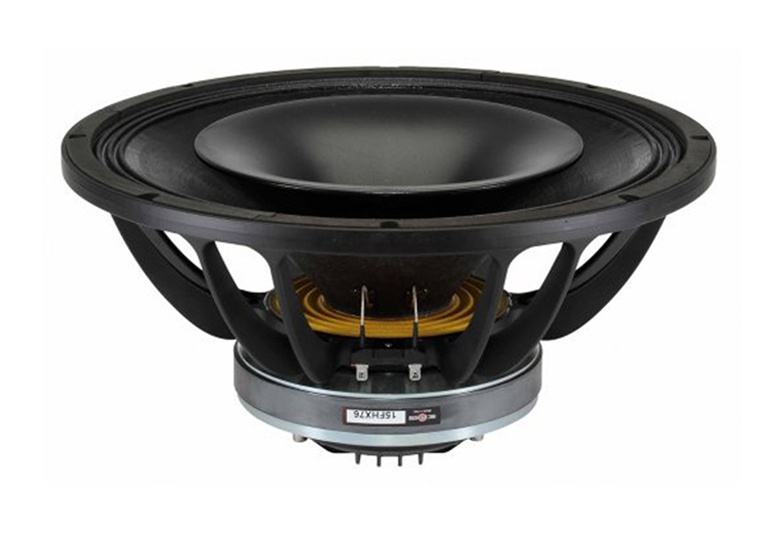

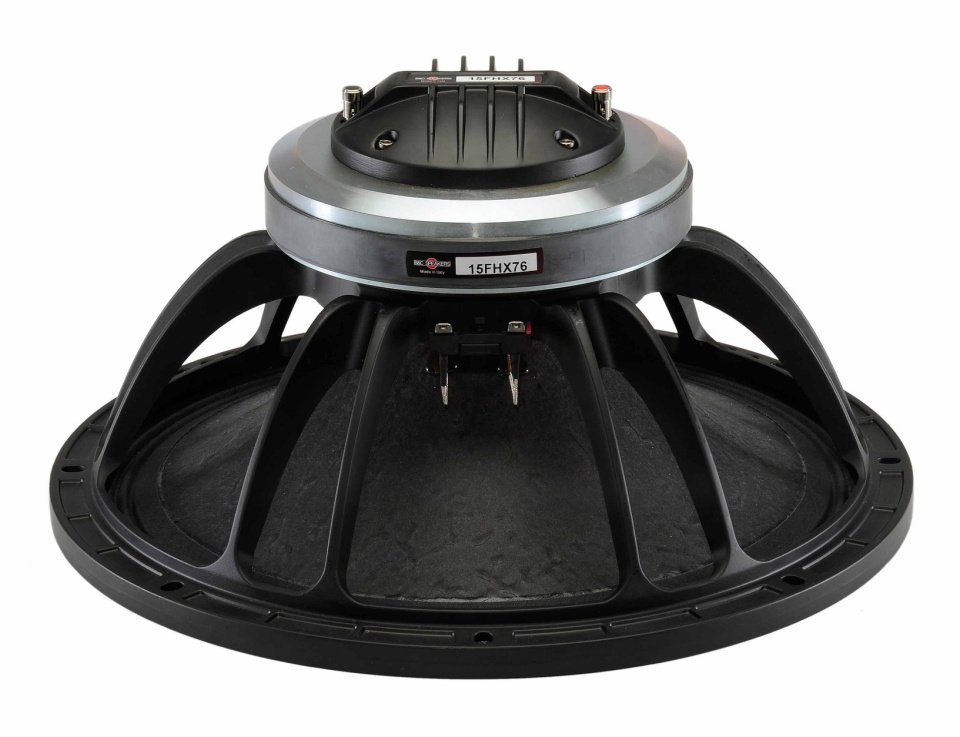

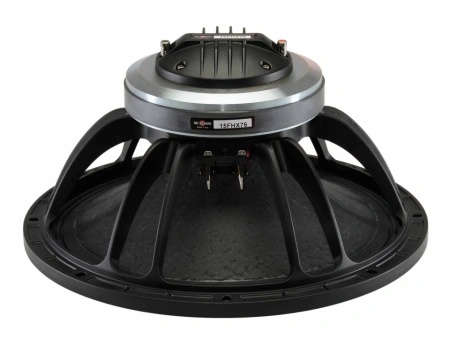

Difuzor coaxial 15 Inch B&C 15FHX76 - 8 Ohm
Descriere
Specificatii:
Diametru: 380 mm (15.0 in)
Impedanta: 8 Ω
Impedanta minima LF: 6.0 Ω
Impedanta minima HF: 7.5 Ω

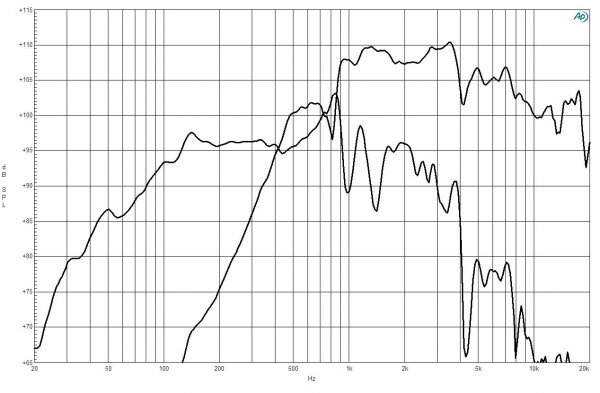

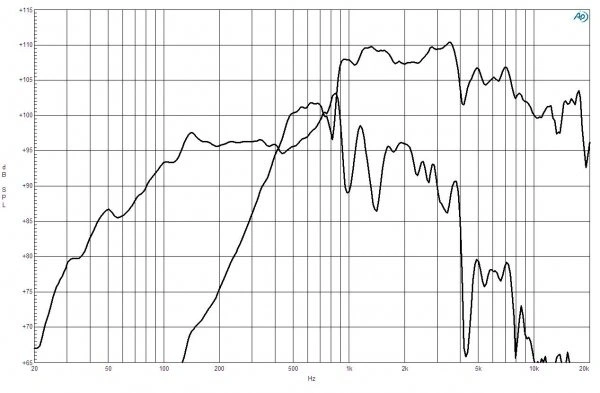

Gama frecventa: 40 - 18000 Hz
Unghi dispersie: 60° x 40°
Magnet: Ferita (ceramic)
Sensibilitate (LF-HF): 98.0 - 107.0 dB
Putere nominala (LF-HF): 400 - 80 W
Putere continua program (LF-HF): 800 - 160 W
Diametrul bobinei (LF-HF): 76 - 75 mm (3.0 - 3.0 in)
Sarma bobina (LF-HF): cupru - aluminiu
Diafragma: titaniu
Frecventa de taiere recomandata: 1.2 kHz

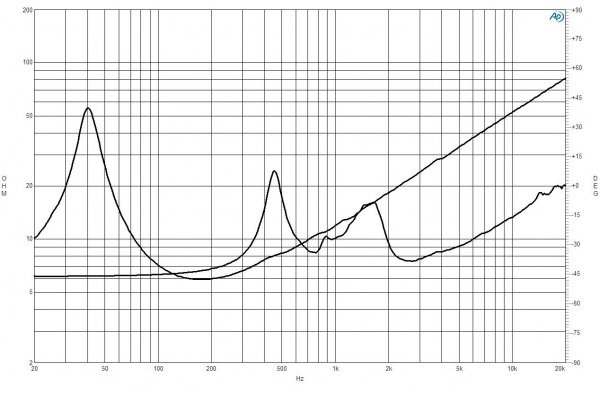

Parametri:
Fs 40 Hz
Re 5 Ω
Qes 0.47
Qms 5.2
Qts 0.43
Vas 186.0 dm3 (6.56 ft3)
Sd 855.0 cm2 (132.5 in2)
η₀ 2.4 %
Xmax 6.5 mm
Xvar 7.0 mm
Mms 88 g
Bl 15.5 Txm
Le 1.5 mH
EBP 85 Hz

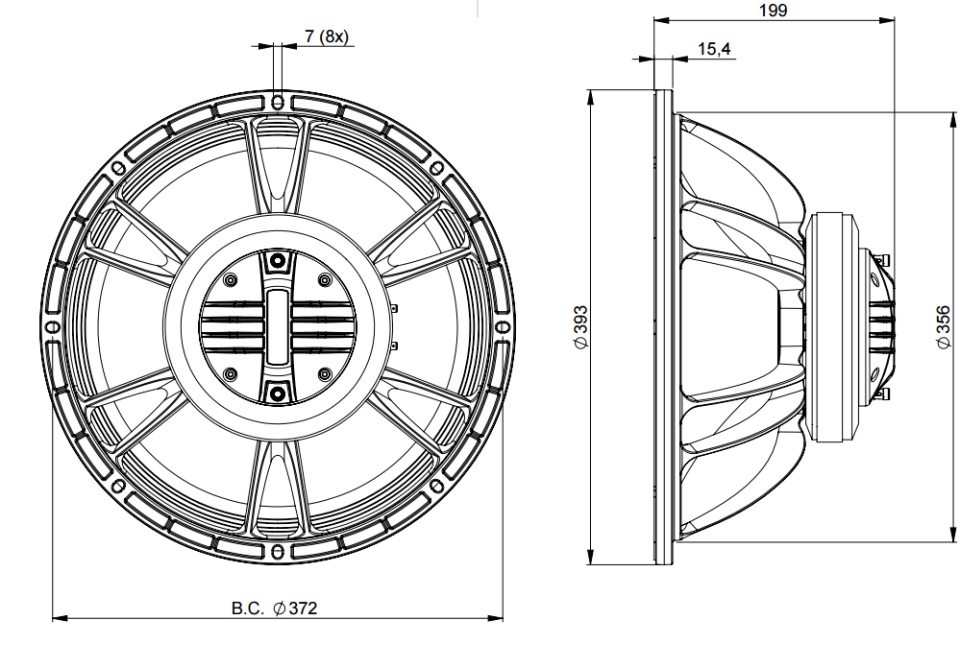

Dimensiuni si masa:
Diametru total: 393 mm (15.5 in)
Diametru gaurilor de prindere: 374 mm (14.7 in)
Diametru gaurii de decupaj: 354 mm (13.94 in)
Adancime difuzor: 199 mm (7.83 in)
Grosime sasiu: 16 mm (0.62 in)
Masa neta: 9.5 kg (20.9 lb)
Masa totala cu ambalaj: 10.2 kg (22.5 lb)
Dimensiuni cutie difuzor: 446x439x253 mm (17.5x17.3x10 in)
