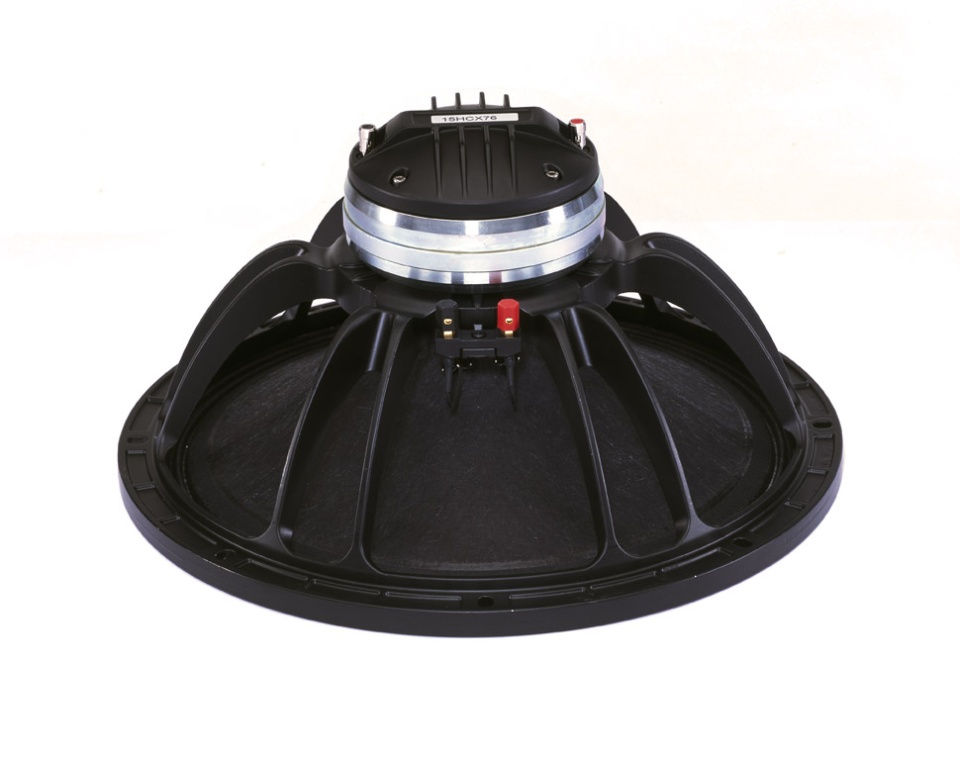

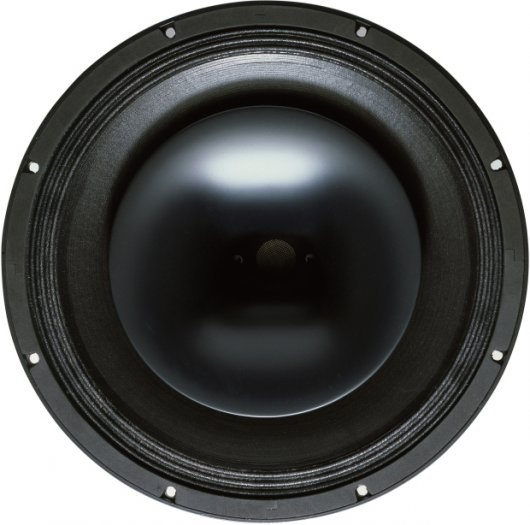

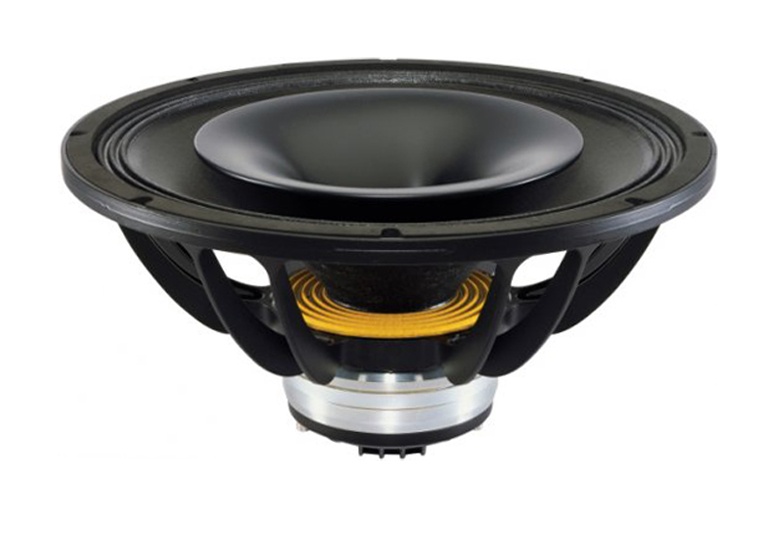

Difuzor coaxial 15 Inch B&C 15HCX76 - 8 Ohm
Descriere
Specificatii:
Diametru: 380 mm (15.0 in)

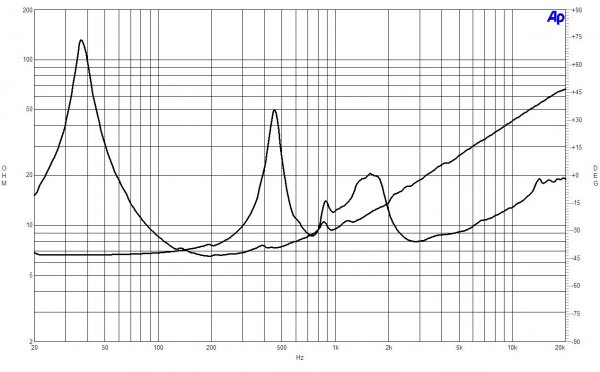

Impedanta: 8 Ω
Impedanta minima LF: 6.0 Ω
Impedanta minima HF: 8.0 Ω

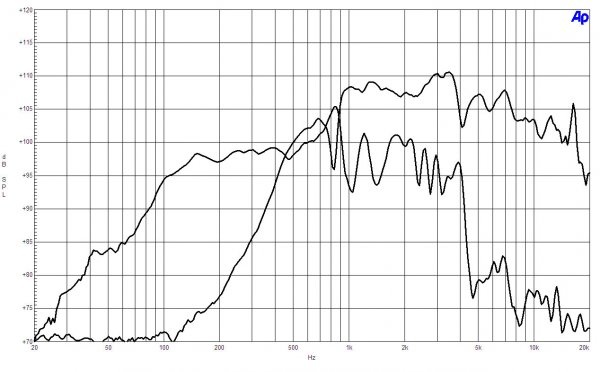

Gama frecventa: 40 - 18000 Hz
Unghi dispersie: 60° x 40°
Magnet: Neodymium Ring
Sensibilitate (LF-HF): 99.0 - 107.0 dB
Putere nominala (LF-HF): 400 - 80 W
Putere continua program (LF-HF): 800 - 160 W
Diametrul bobinei (LF-HF): 76 - 75 mm (3.0 - 3.0 in)
Sarma bobina (LF-HF): cupru - aluminiu
Diafragma: titaniu
Frecventa de taiere recomandata: 1.2 kHz
Parametri:
Fs 38 Hz
Re 5 Ω
Qes 0.3
Qms 5.8
Qts 0.28
Vas 246.0 dm3 (8.6 ft3)
Sd 855.0 cm2 (132.5 in2)
η₀ 3.7 %
Xmax 4.5 mm
Xvar 6.0 mm
Mms 82 g
Bl 17.8 Txm
Le 0.9 mH
EBP 126 Hz

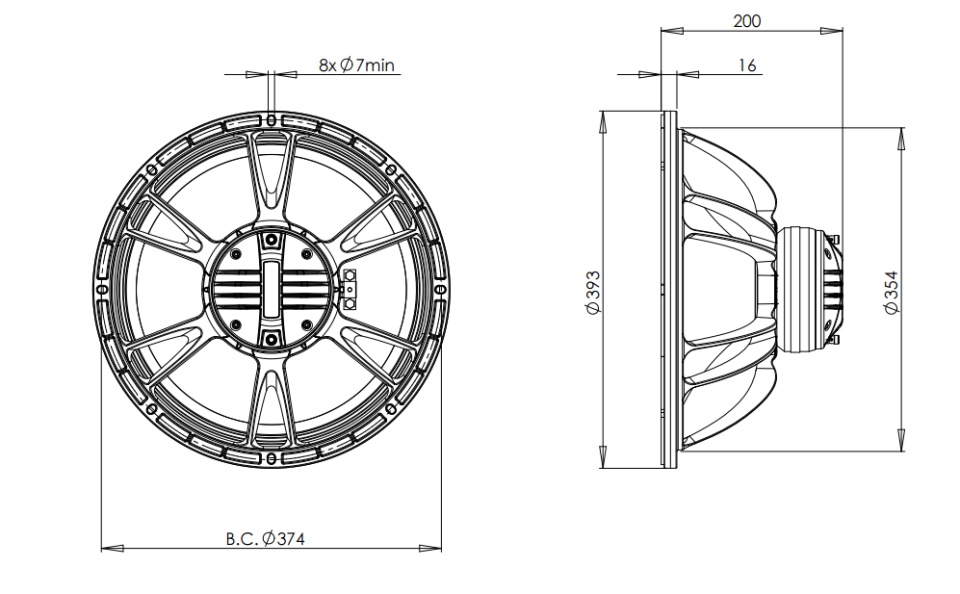

Dimensiuni si masa:
Diametru total: 393 mm (15.5 in)
Diametru gaurilor de prindere: 374 mm (14.7 in)
Diametru gaurii de decupaj: 354 mm (13.94 in)
Adancime difuzor: 200 mm (7.87 in)
Grosime sasiu: 16 mm (0.62 in)
Masa neta: 5.6 kg (12.3 lb)
Masa totala cu ambalaj: 7.0 kg (15.4 lb)
Dimensiuni cutie difuzor: 450x450x290 mm (17.7x17.7x11.4 in)
