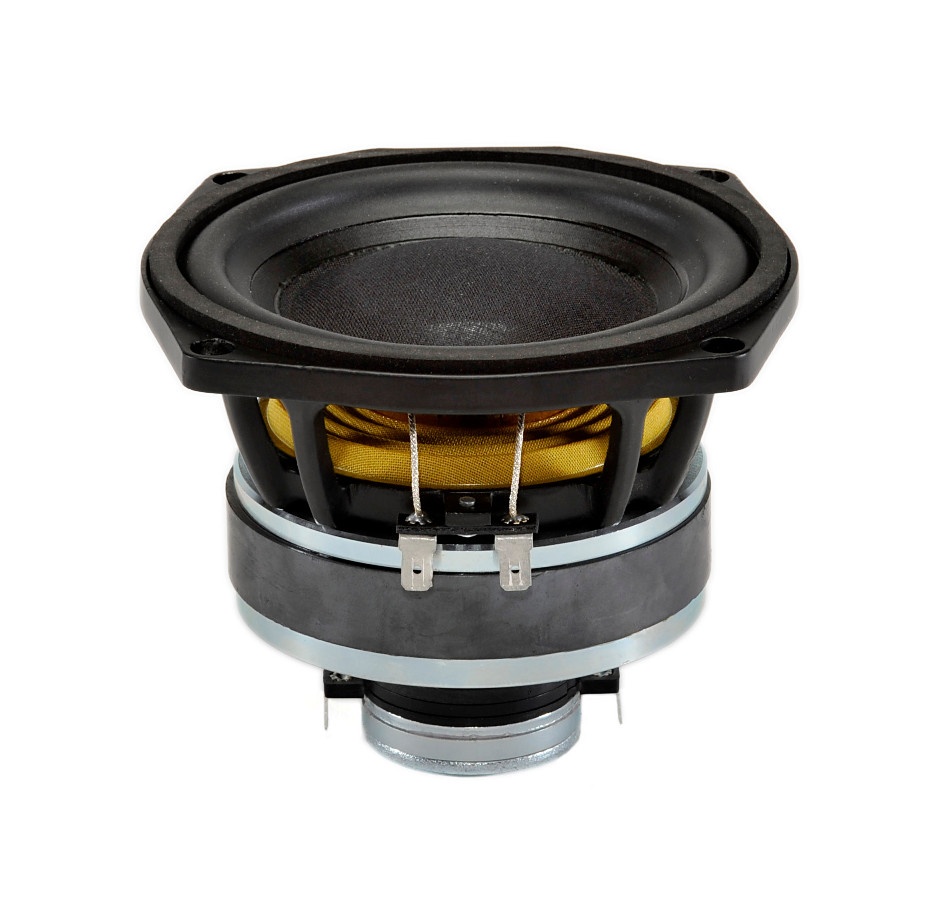

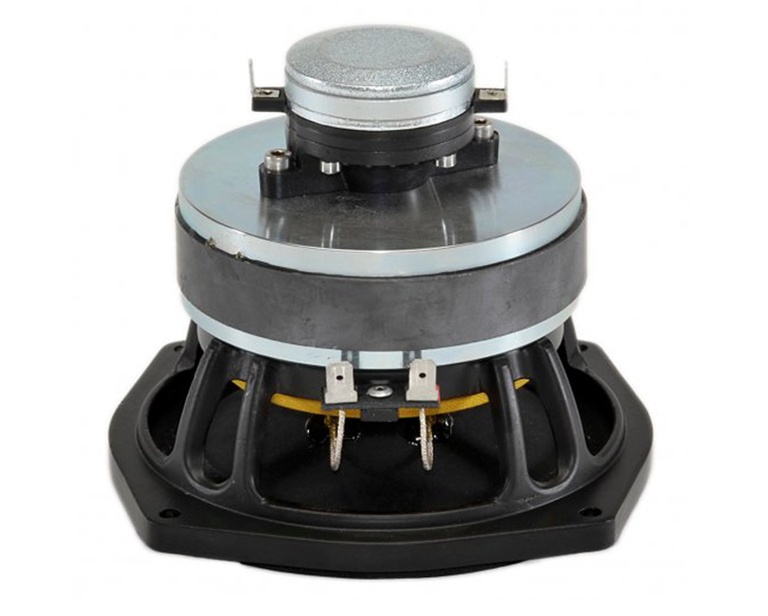

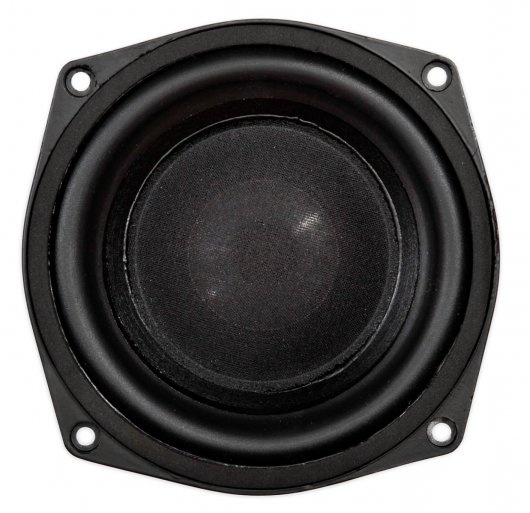

Difuzor coaxial 5 Inch B&C 5FCX44 - 8 Ohm
Descriere
Specificatii:
Diametru: 127 mm (5.0 in)
Impedanta: 8 Ω
Impedanta minima LF: 6.5 Ω
Impedanta minima HF: 6.5 Ω
Gama frecventa: 60 - 18000 Hz
Unghi dispersie: 70° x 70°
Magnet: Ferita (ceramic)
Sensibilitate (LF-HF): 91.0 - 107.5 dB
Putere nominala (LF-HF): 100 - 10 W
Putere continua program (LF-HF): 200 - 20 W
Diametrul bobinei (LF-HF): 44 - 25 mm (1.7 - 1.0 in)
Sarma bobina (LF-HF): cupru - aluminiu
Diafragma: poliester
Amplificator recomandat: 2.5 kHz
Parametri:
Fs 61 Hz
Re 6 Ω
Qes 0.25
Qms 7.8
Qts 0.25
Vas 7.0 dm3 (0.25 ft3)
Sd 95.0 cm2 (14.7 in2)
η₀ 0.6 %
Xmax 3.0 mm
Xvar 5.0 mm
Mms 12 g
Bl 10.5 Txm
Le 0.8 mH
EBP 244 Hz

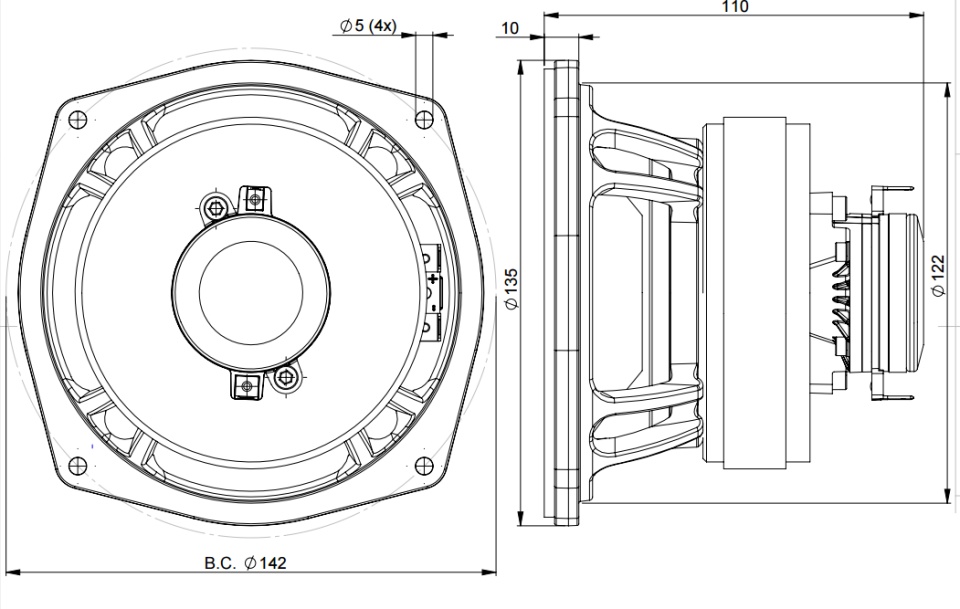

Dimensiuni si masa:
Diametru total: 136 mm (5.35 in)
Diametru gaurilor de prindere: 142 mm (5.6 in)
Diametru gaurii de decupaj: 122 mm (4.8 in)
Adancime difuzor: 110mm (4.33 in)
Grosime sasiu: 8 mm (0.31 in)
Masa neta: 1.85 kg (4.1 lb)
Masa totala cu ambalaj: 2.2 kg (4.85 lb)
Dimensiuni cutie difuzor: 266x259x155 mm (10.5x10.2x6.1 in)
