Difuzor coaxial 6.5 Inch B&C 6FHX51 - 8 Ohm
Descriere
Specificatii:
Diametru: 170 mm (6.5 in)
Impedanta: 8 Ω
Impedanta minima LF: 6.5 Ω
Impedanta minima HF: 7.0 Ω
Gama frecventa: 85 - 18000 Hz
Unghi dispersie: 70° x 70°
Magnet: Ferita (ceramic)
Sensibilitate (LF-HF): 93.0 - 108.5 dB
Putere nominala (LF-HF): 150 - 10 W
Putere continua program (LF-HF): 300 - 20 W
Diametrul bobinei (LF-HF): 51 - 25 mm (2.0 - 1.0 in)
Sarma bobina (LF-HF): cupru - aluminiu
Diafragma: poliester
Frecventa de taiere recomandata: 2.5 kHz
Parametri:
Fs 85 Hz
Re 6 Ω
Qes 0.4
Qms 7.8
Qts 0.37
Vas 5.0 dm3 (0.18 ft3)
Sd 132.0 cm2 (20.5 in2)
η₀ 0.83 %
Xmax 5.0 mm
Xvar 5.7 mm
Mms 16 g
Bl 11.3 Txm
Le 1.0 mH
EBP 212 Hz

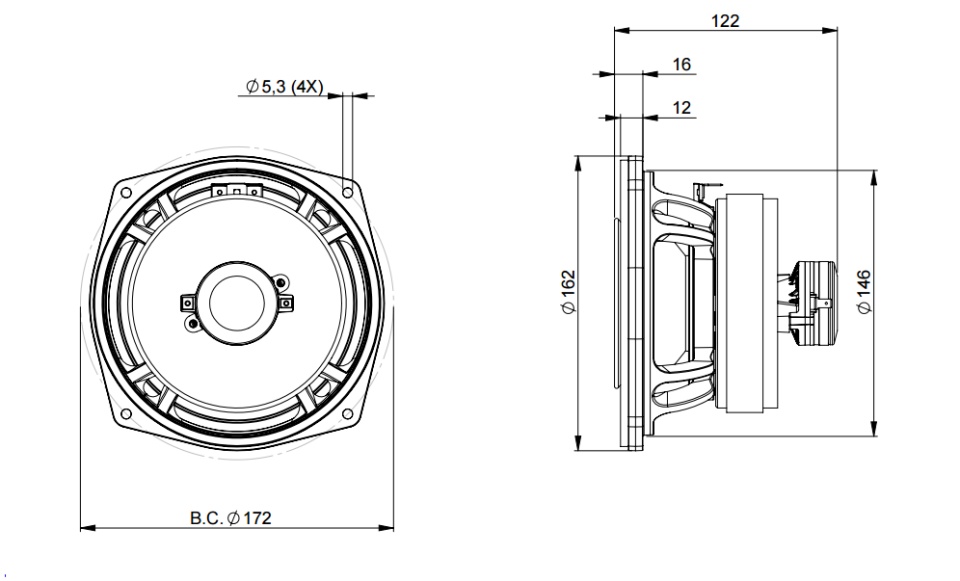

Dimensiuni si masa:
Diametru total: 187 mm (6.4 in)
Diametru gaurilor de prindere: 172 mm (6.7 in)
Diametru gaurii de decupaj: 146 mm (5.75 in)
Adancime difuzor: 122 mm (4.8 in)
Grosime sasiu: 12 mm (0.47 in)
Masa neta: 2.7 kg (5.9 lb)
Masa totala cu ambalaj: 3.05 kg (6.72 lb)
Dimensiuni cutie difuzor: 321x294x190 mm (12.6x11.6x7.5 in)
