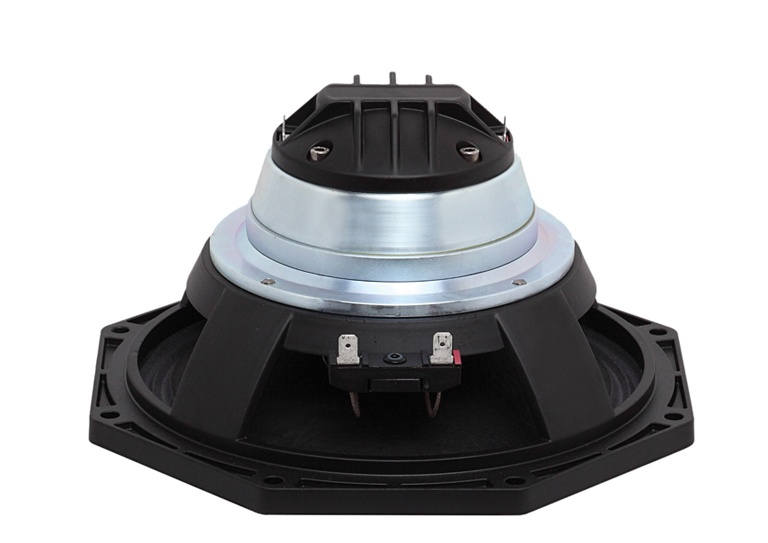

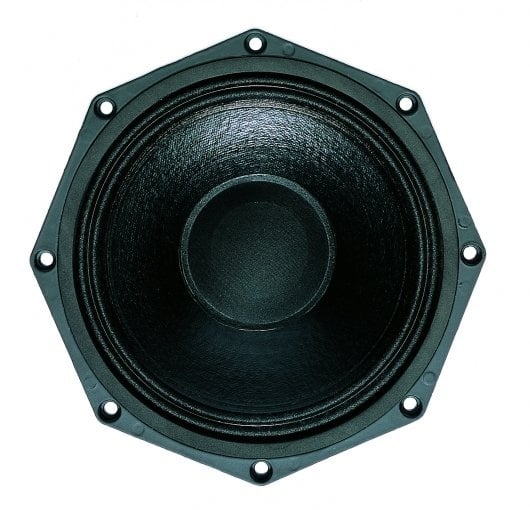

Difuzor coaxial 8 Inch B&C 8CXN51 - 8 Ohm
Descriere
Specificatii:
Diametru: 210 mm (8.0 in)

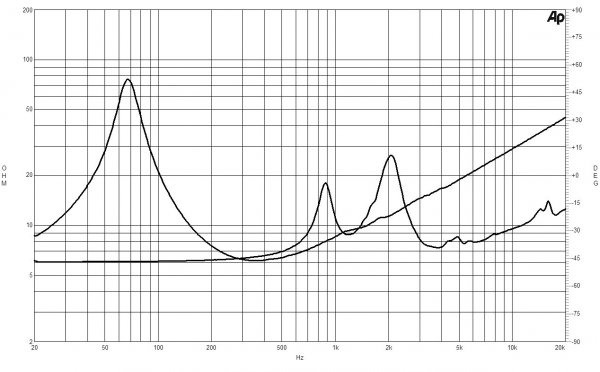

Impedanta: 8 Ω
Impedanta minima LF: 6.0 Ω
Impedanta minima HF: 7.4 Ω
Gama frecventa: 70 - 18000 Hz
Unghi dispersie: 100°
Magnet: Neodymium Ring

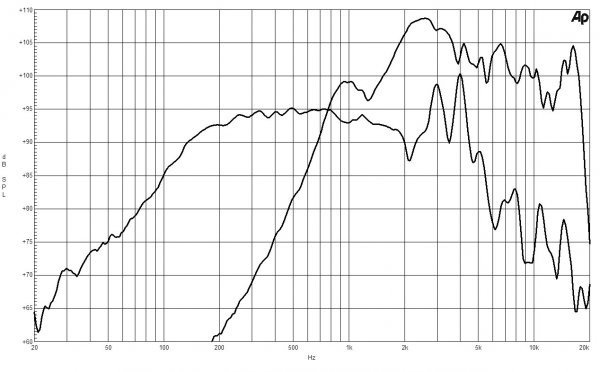

Sensibilitate (LF-HF): 97.0 - 104.0 dB
Putere nominala (LF-HF): 250 - 50 W
Putere continua program (LF-HF): 500 - 100 W
Diametrul bobinei (LF-HF): 51 - 44 mm (2.0 - 1.7 in)
Sarma bobina (LF-HF): aluminiu - aluminiu
Diafragma: polieimida
Frecventa de taiere recomandata: 1.8 kHz
Parametri:
Fs 68 Hz
Re 5 Ω
Qes 0.29
Qms 4.7
Qts 0.27
Vas 17.0 dm3 (0.6 ft3)
Sd 220.0 cm2 (34.1 in2)
η₀ 1.8 %
Xmax 6.0 mm
Xvar 6.0 mm
Mms 22 g
Bl 12.6 Txm
Le 0.9 mH
EBP 234 Hz

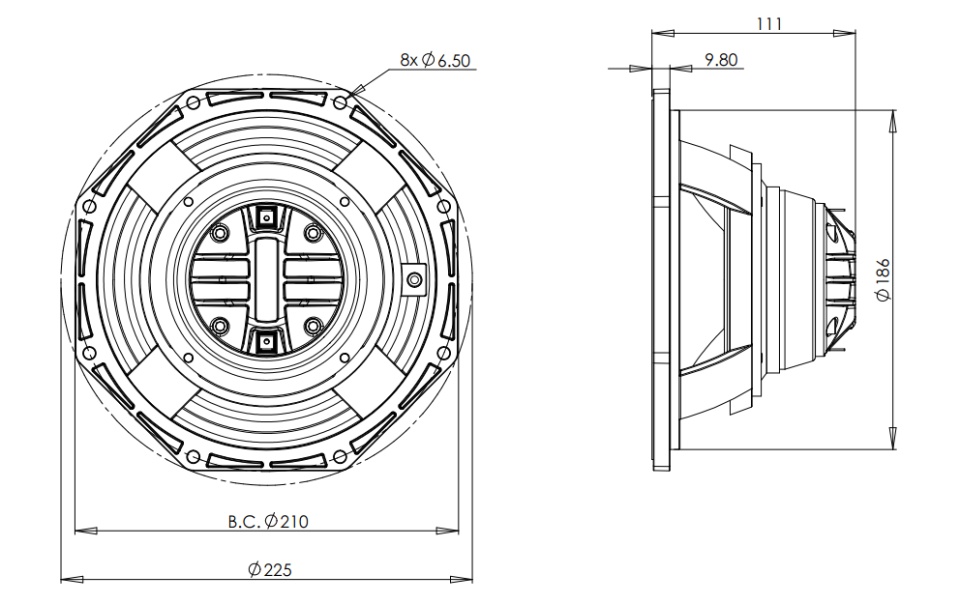

Dimensiuni si masa:
Diametru total: 225 mm (8.8 in)
Diametru gaurilor de prindere: 210 mm (8.3 in)
Diametru gaurii de decupaj: 187 mm (7.4 in)
Adancime difuzor: 111 mm (4.4 in)
Grosime sasiu: 10 mm (0.4 in)
Masa neta: 2.5 kg (5.5 lb)
Masa totala cu ambalaj: 3.2 kg (7.0 lb)
Dimensiuni cutie difuzor: 260x260x170 mm (10.2x10.2x6.7 in)
