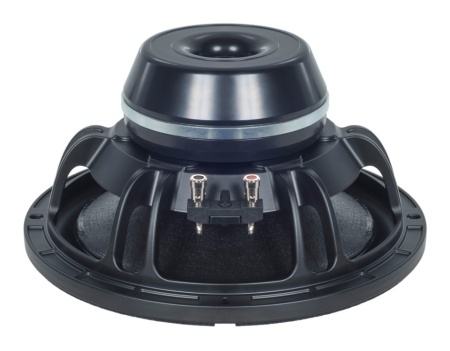

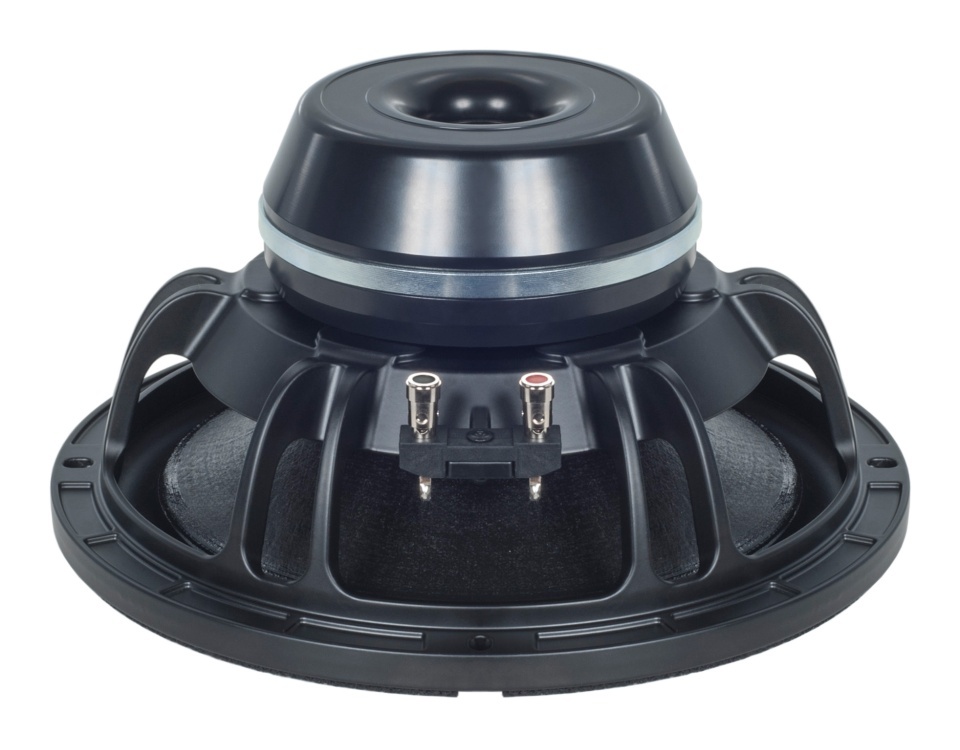

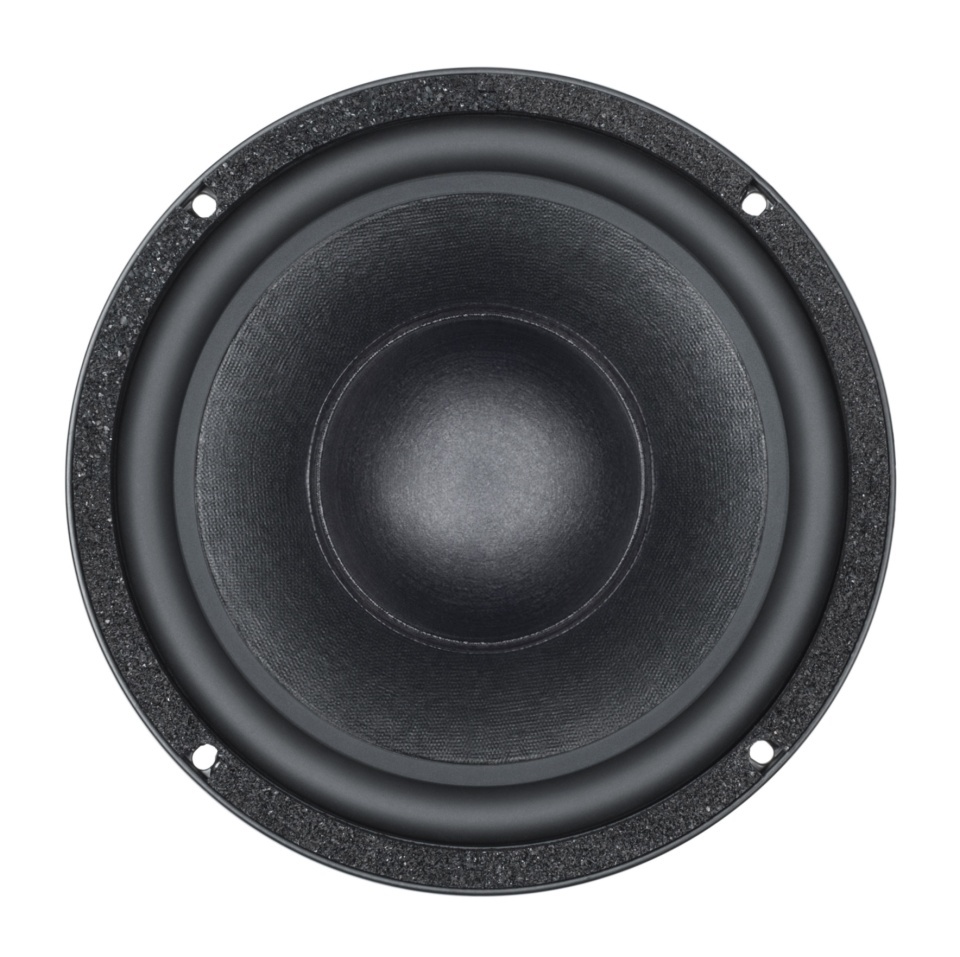

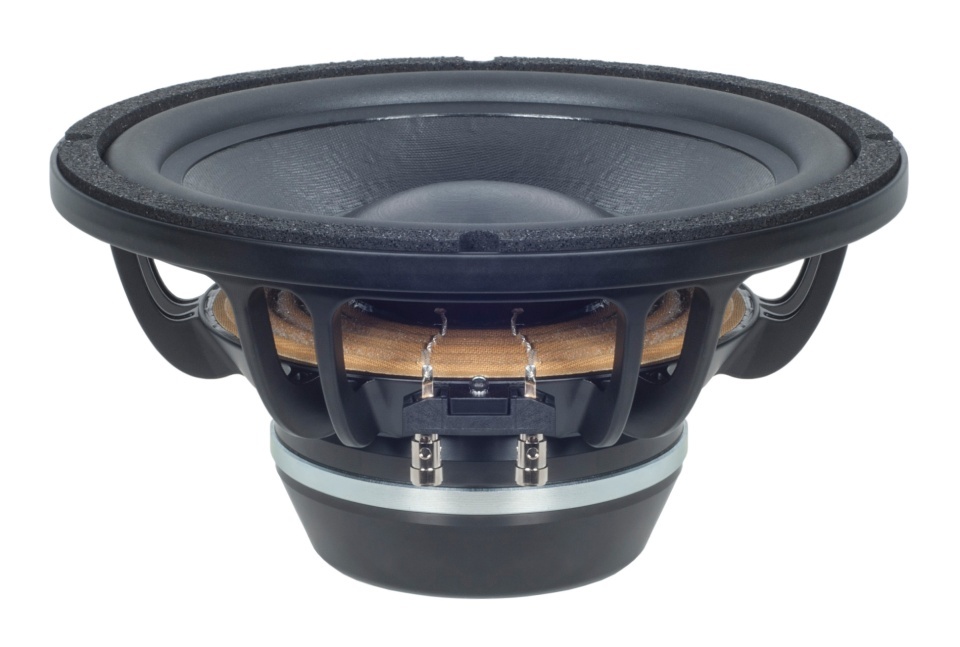

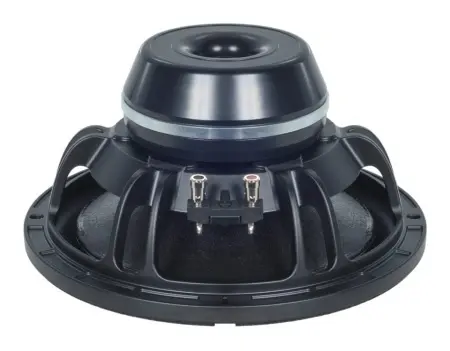

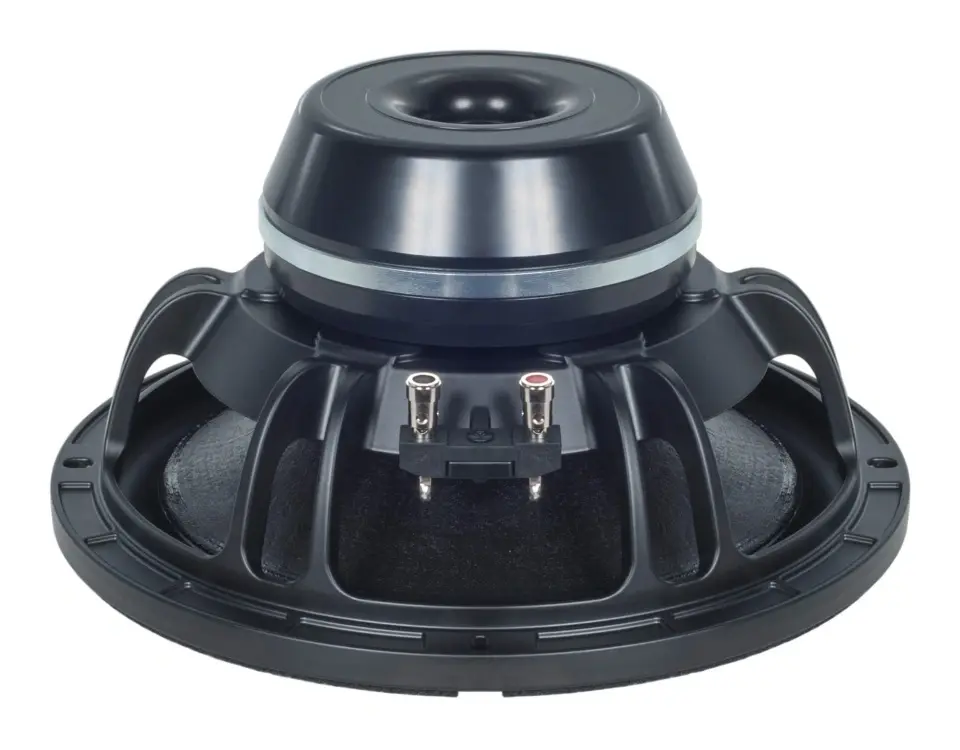

Difuzor woofer 10 inch B&C 10BG76 - 8 Ohm

Descriere

Specificatii:

Diametru: 250 mm (10 in)

Impedanta: 8 Ω

Impedanta minima: 6.8 Ω

Putere nominala: 500 W

Putere continua program: 1000 W

Sensibilitate (1W/1m): 91.5 dB

Gama frecventa: 49-800 Hz

Diametrul bobinei: 76 mm (3 in)

Sarma bobina: Cupru

Suport bobina: Fibra de sticla

Adancime bobina: 25 mm (1 in)

Adancime piesa polara: 11.5 mm (0.45 in)

Densitate flux magnetic: 1.22 T

Design:

Magnet: Ferita (ceramic)

Spider: Single

Incinta recomandata: 25 litri

Acordaj recomandat: 65 Hz

Parametri Difuzor 10 inch B&C 10PS26 - 8 Ohm:

Fs 49 Hz

Re 4.1 Ω

Qes 0.23

Qms 5.74

Qts 0.22

Vas 16.7 dm3 (0.59 ft3)

Sd 320 cm2 (49.1 in2)

η₀ 0.86 %

Xmax 9.6 mm

Xvar 12 mm

Mms 91.4 g

Bl 22.4 Txm

Le 1.37 mH

EBP 213 Hz

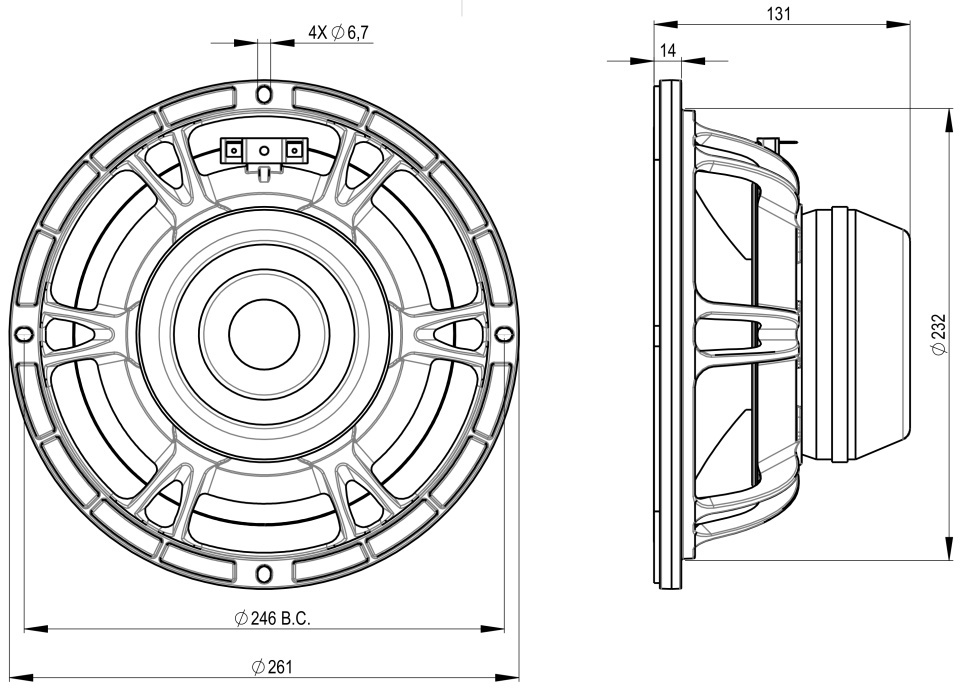

Dimensiuni si masa:

Diametru total: 261 mm (10.28 in)

Diametru gaurilor de prindere: 246 mm (9.69 in)

Diametru gaurii de decupaj: 233 mm (9.17 in)

Adancime difuzor: 131 mm (5.16 in)

Grosime flansa si garnitura: 14 mm (0.55 in)

Masa neta: 4.85 kg

Masa totala cu ambalaj: 5.45 kg

Dimensiuni cutie difuzor: 295x314x175 mm
