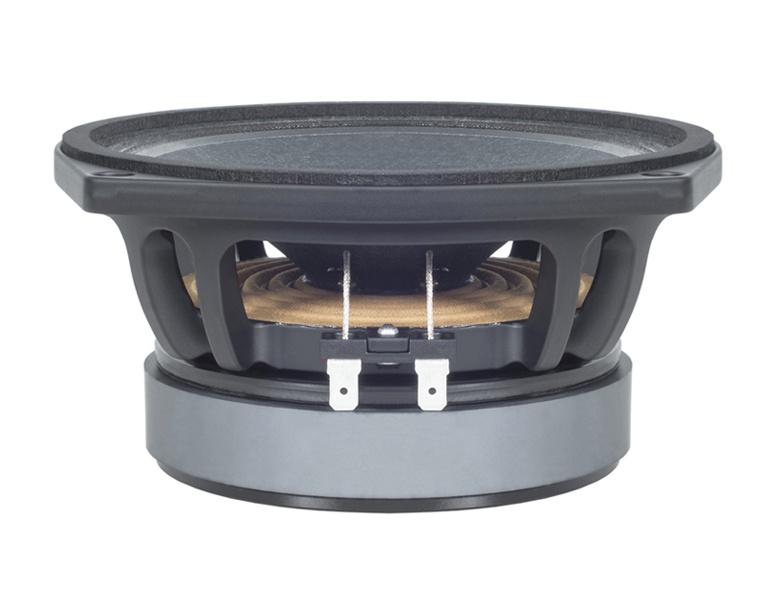

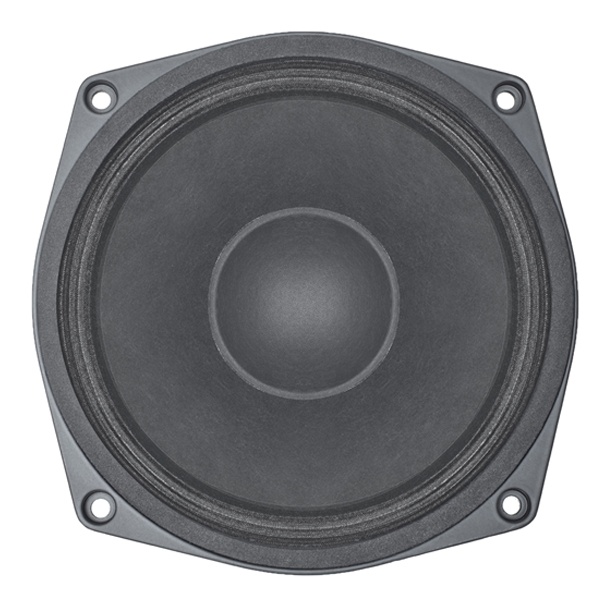

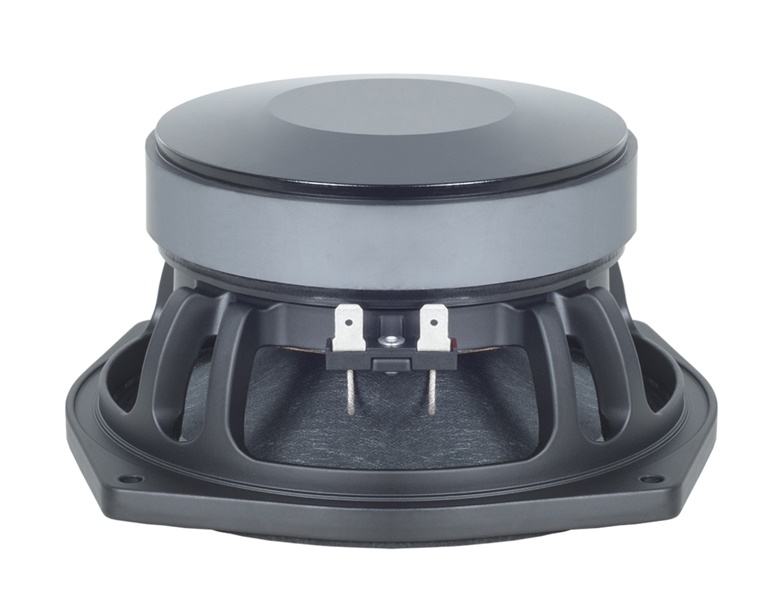

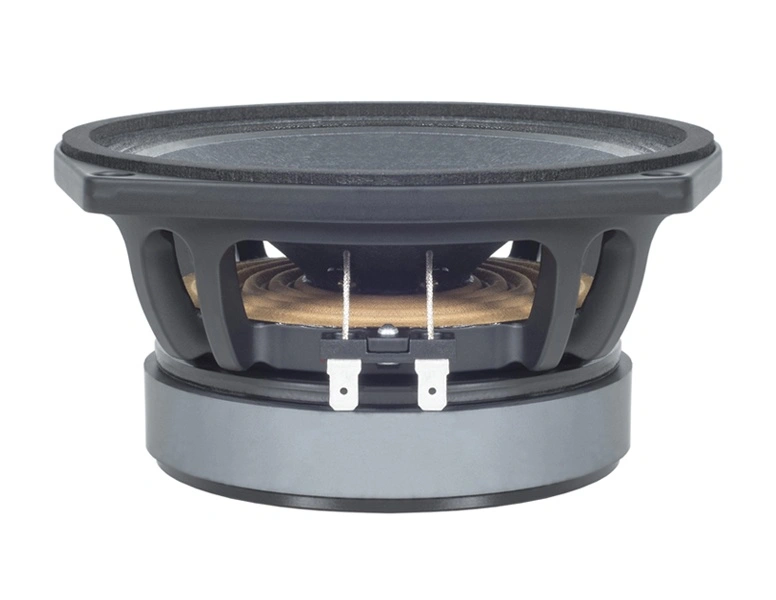

Difuzor Woofer 6.5 Inch B&C 6MD38 16 ohm

Specificatii:

Diametru: 170 mm (6.5 in)

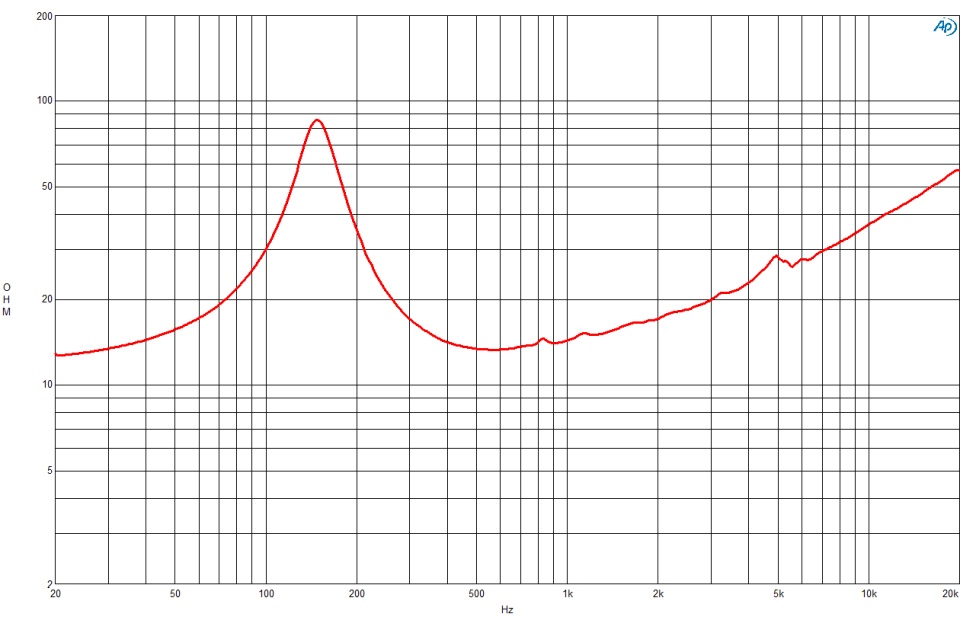

Impedanta: 16 Ω

Impedanta minima: 13.3 Ω

Putere nominala: 120 W

Putere continua program: 240 W

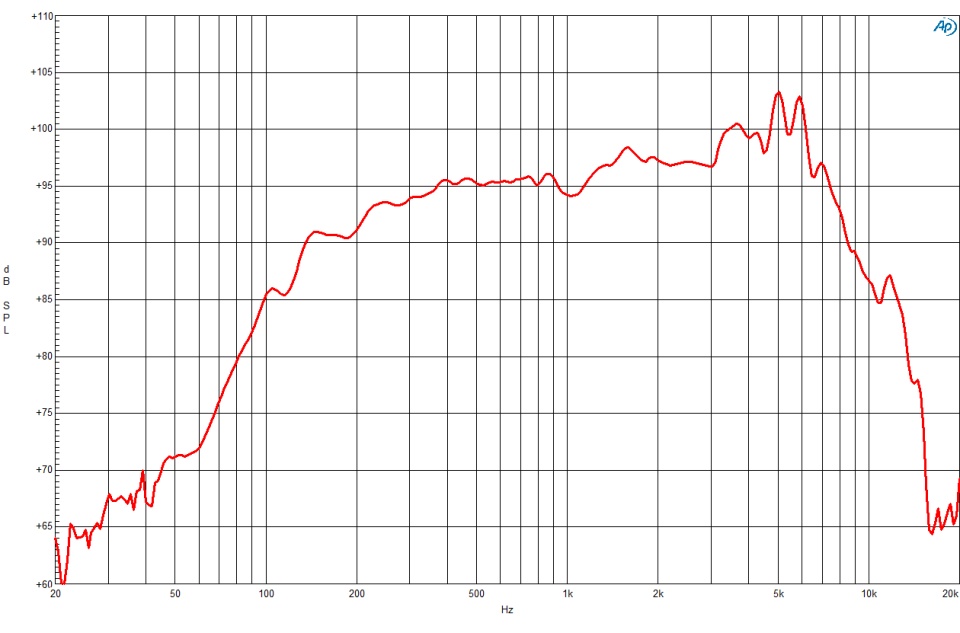

Sensibilitate (1W/1m): 95 dB

Gama frecventa: 150 - 6000 Hz

Diametrul bobinei: 38 mm (1.5 in)

Sarma bobina: Aluminiu

Suport bobina: Fibra de sticla

Adancime bobina: 9 mm (0.35 in)

Adancime piesa polara: 6 mm (0.25 in)

Densitate flux magnetic: 1.4 T

Design:

Magnet: Ferita (ceramic)

Spider: Single

Parametri Difuzor 6 inch B&C 6MD38 - 16 Ω:

Fs 150 Hz

Re 11.7 Ω

Qes 0.61

Qms 2.8

Qts 0.5

Vas 2.3 dm3 (0.08 ft3)

Sd 132 cm2 (20.5 in2)

η₀ 1.4 %

Xmax 3.5 mm

Xvar 2 mm

Mms 11 g

Bl 14.5 Txm

Le 0.4 mH

EBP 245 Hz

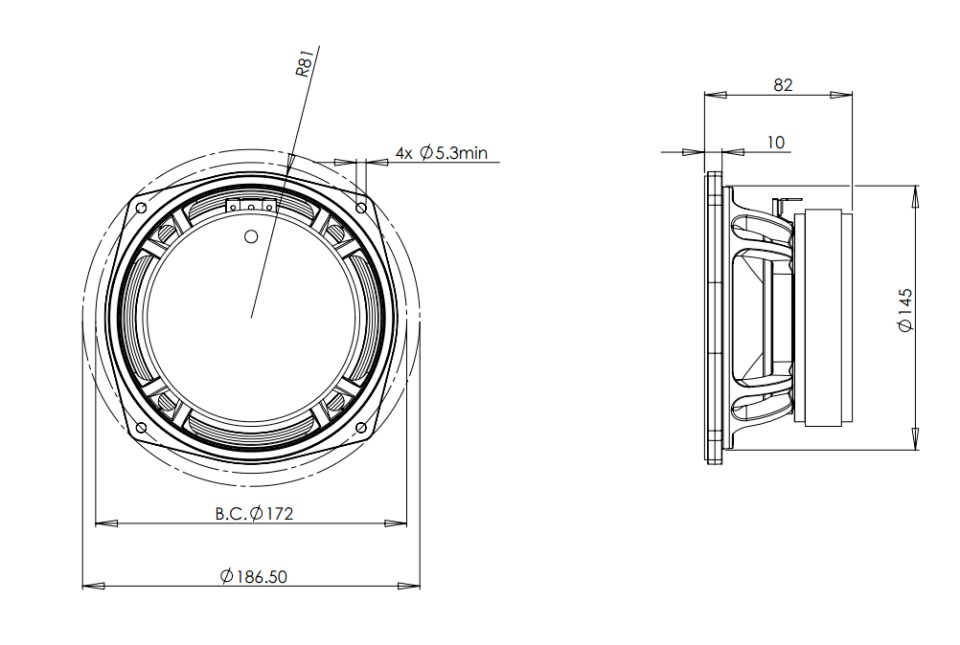

Dimensiuni si masa:

Diametru total: 187 mm (7.4 in)

Diametru gaurilor de prindere: 172 mm (6.7 in)

Diametru gaurii de decupaj: 145 mm (5.7 in)

Adancime difuzor: 82 mm (3.2 in)

Grosime sasiu: 9 mm (0.35 in)

Volum de aer ocupat de difuzor: 0.8 litri (0.03 ft3)

Masa neta: 2.2 kg (4.8 lb)

Masa totala cu ambalaj: 2.45 kg (5.4 lb)

Dimensiuni cutie difuzor: 221x214x130 mm (8.7x8.4x5.1 in)
