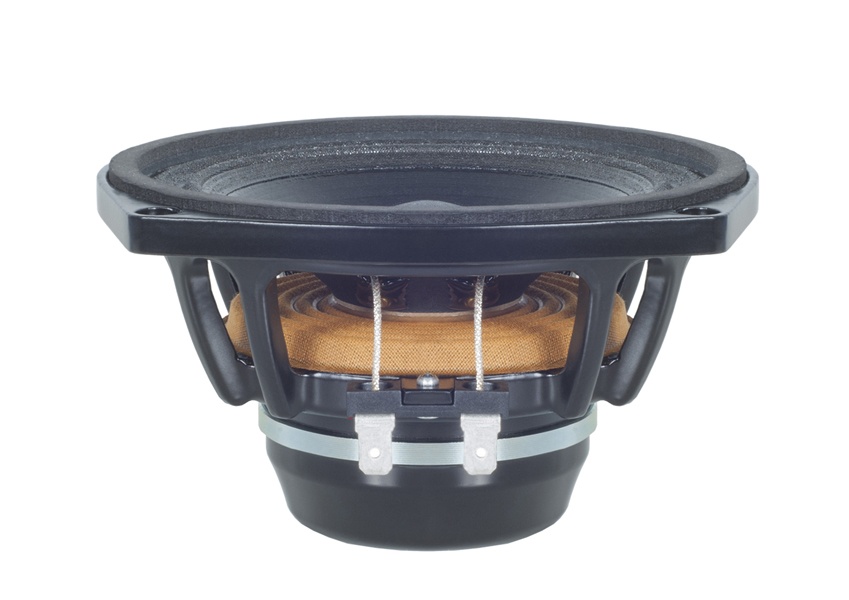

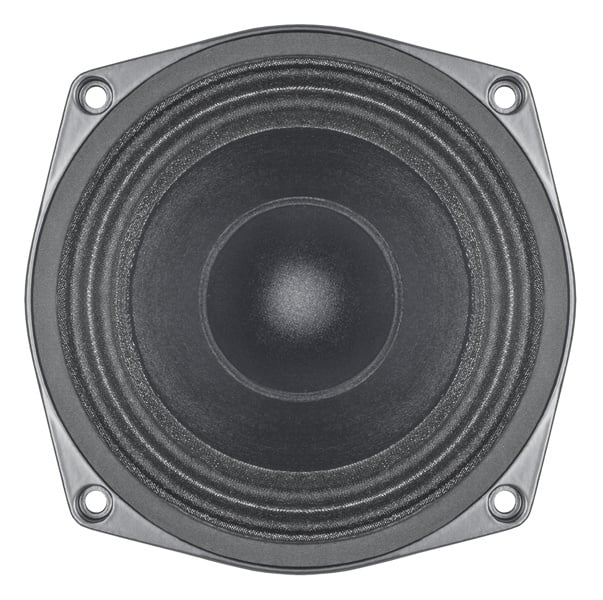

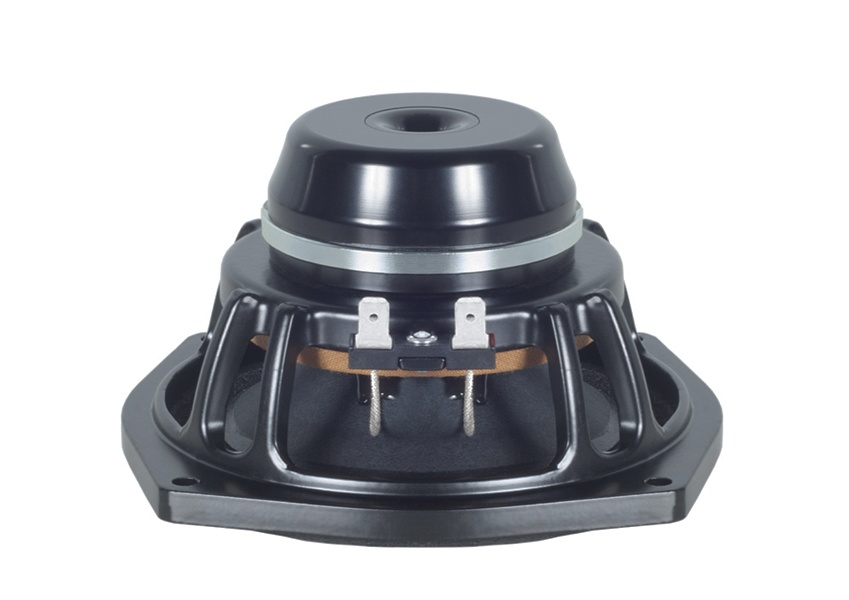

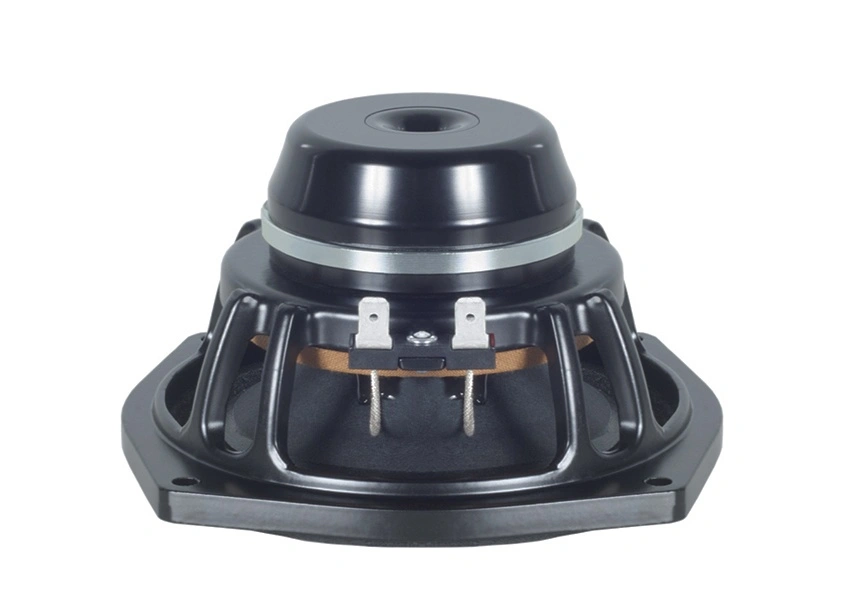

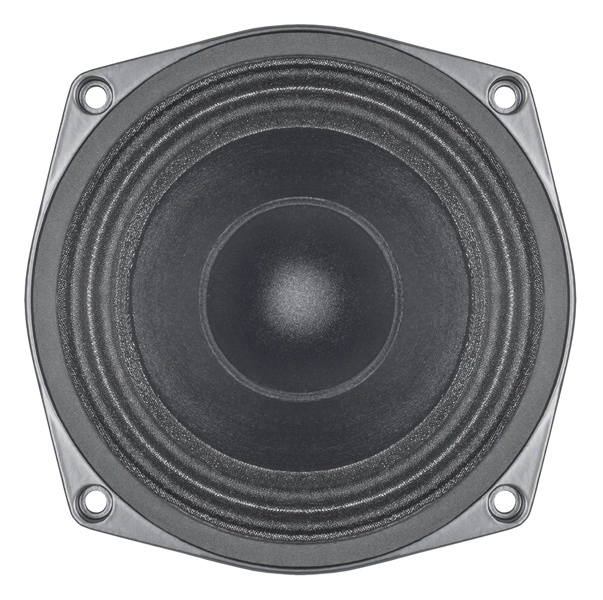

Difuzor Woofer B&C 5MDN38 - 16 ohm

Diametru: 127 mm (5 in)

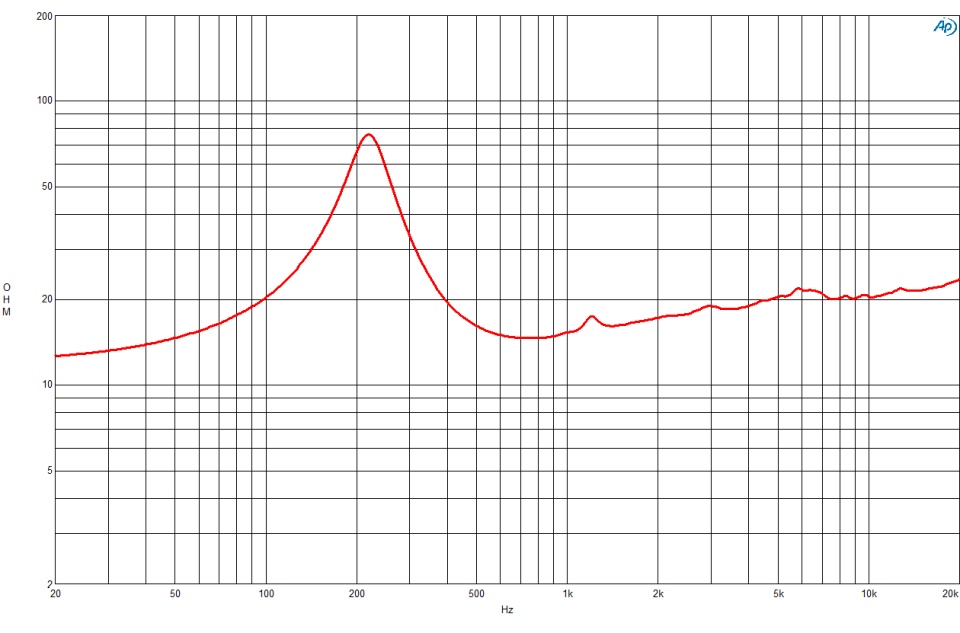

Impedanta: 16 Ω

Impedanta minima: 14.5 Ω

Putere nominala: 100 W

Putere continua program: 200 W

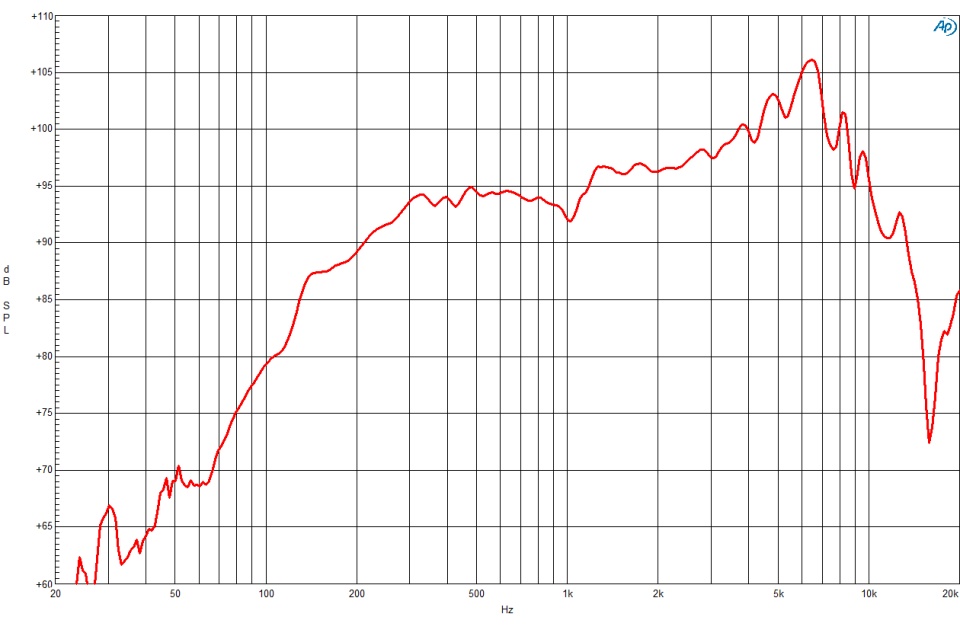

Sensibilitate (1W/1m): 96 dB

Gama frecventa: 230 - 10000 Hz

Diametrul bobinei: 38 mm (1.5 in)

Sarma bobina: Aluminiu

Suport bobina: Fibra de sticla

Adancime bobina: 10 mm (0.39 in)

Adancime piesa polara: 6 mm (0.24 in)

Densitate flux magnetic: 1.25 T

Design:

Magnet: Neodim

Spider: Single

Parametri Difuzor 5 inch B&C 5MDN38 - 16 Ω NEO:

Fs 230 Hz

Re 11.7 Ω

Qes 0.57

Qms 3

Qts 0.48

Vas 0.8 dm3 (0.03 ft3)

Sd 95 cm2 (14.7 in2)

η₀ 1.7 %

Xmax 3.5 mm

Xvar 2.5 mm

Mms 8 g

Bl 15 Txm

Le 0.7 mH

EBP 403 Hz

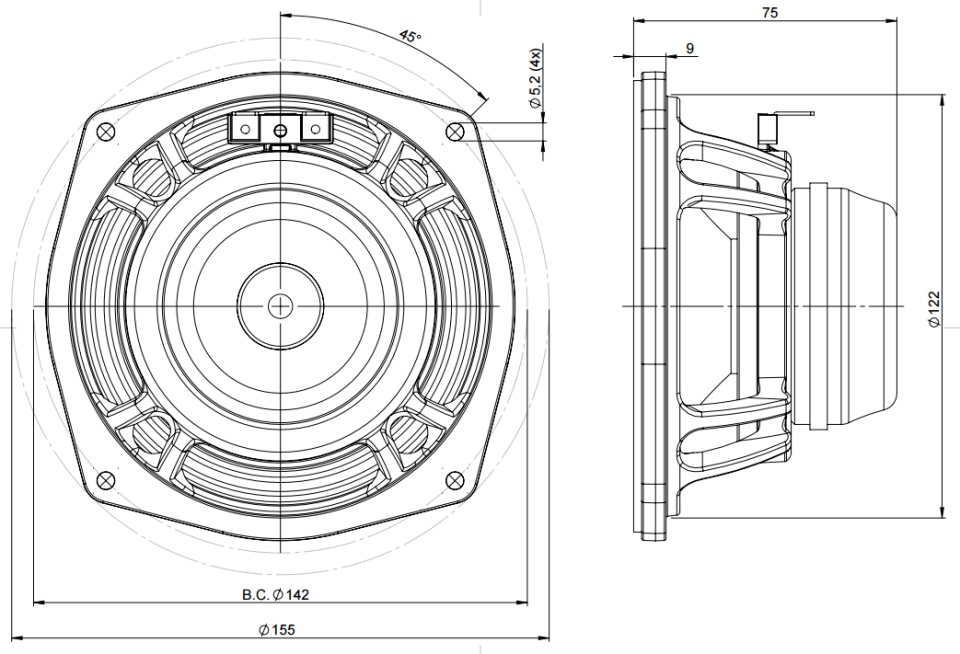

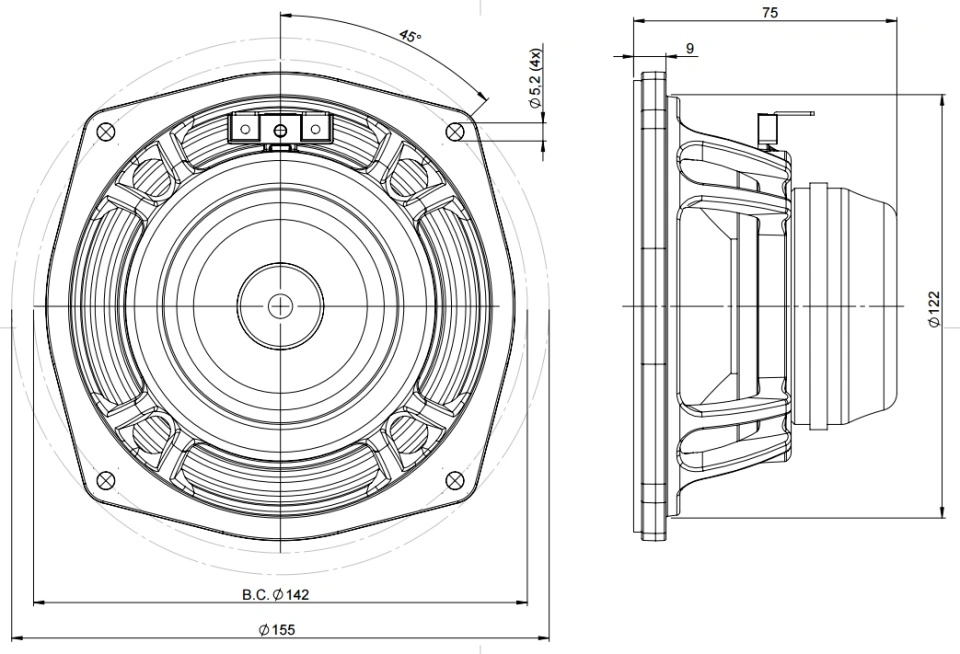

Dimensiuni si masa:

Diametru total: 155 mm (6.1 in)

Diametru gaurilor de prindere: 142 mm (5.6 in)

Diametru gaurii de decupaj: 122.0 mm (4.8 in)

Adancime difuzor: 75 mm (2.95 in)

Grosime sasiu: 9 mm (0.35 in)

Volum de aer ocupat de difuzor: 0.35 litri (0.01 ft3)

Masa neta: 0.85 kg (1.9 lb)

Masa totala cu ambalaj: 1.05 kg (2.31 lb)

Dimensiuni cutie difuzor: 210x210x125 mm (8.27x8.27x4.92 in)
